BASELINE

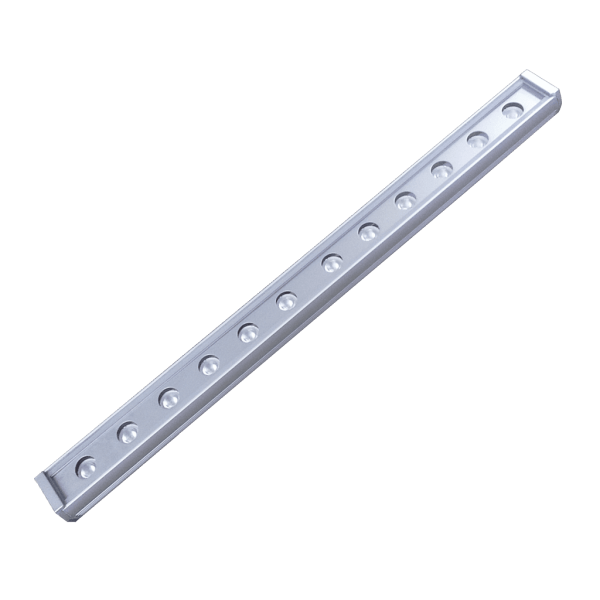

Low Profile Linear Flood Light LED

BaseLine Linear LED Direct Current (DC) Luminaire

BASELINE is a low profile linear LED floodlight with 6°, 10°, 25°, 40°, 120°, 10°x 40°, 30°x 60° and 21°x 56° asymmetric distributions. It come in 1', 2', 3' and 4' nominal lengths and 3000K or 4000K color temperatures. The low profile body is sealed for IP66 rating and can be mounted to either the standard mount, 9.7” cantilever, 36” cable or 18” pendant mount bracket. Comes standard with 6’ lead cord for connecting directly to power source.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
BASELINE
BASELINE
BASELINE
BASELINE
BASELINEBASELINEBASELINEBASELINE

FEATURES & BENEFITS


Performance
750 lm
ft (12.5W/ft)

CCT
2700K
3000K
3500K
4000K

Power Input
20-24 VAC DC
Class I Power Operation.

Control
0-10V Dimming.

Mounting Options
Standard, Cantilever, Cable, and Pendant Mounting.

Warranty
5-Year Limited Warranty

Optic Beam Options

10°
25°
40°
120°
10°x40°
21ºx56º
30°x60°
