Direct View

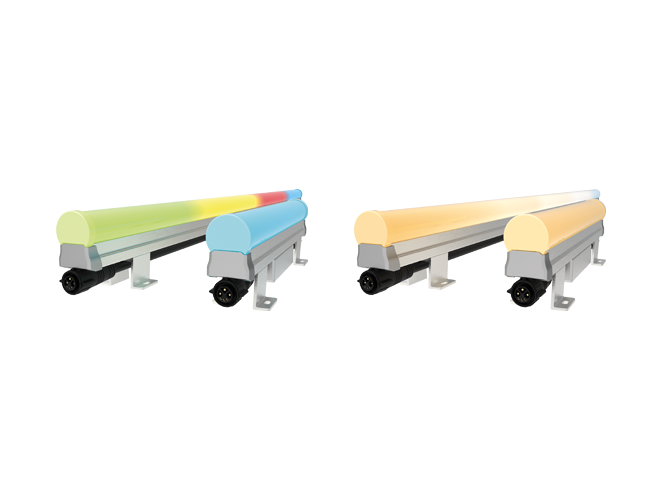

Direct View luminaires from Solid State Luminaires are perfect for creating long ribbons of dynamic lighting! Variable resolution offers the ability to display large-scale graphics and intricately designed effects for an array of architectural, retail, and entertainment settings. The Direct View family offers models in 1 ft or 4 ft lengths suitable for IP66 dry, damp, and wet locations. The housing is marine grade extruded aluminum with tooled end caps, including a standard mounting bracket that clips to either side of the housing and rotates 135 degrees.


Selections:
Mini CoveLine Warm-Dim Direct View
Cove Interior / Direct View
300 lm/ft (2700K)
1800K–2700K
120 VAC Only
120°
IP43 Rated
1', 4'
Downloads
Spec Sheet Downloads
icon
MCWDDV-E.pdf
IES Downloads
icon
MCWDDV-E-IES.zip
Install Instructions Downloads
icon
MCWDDV-Eii.pdf
ColourLine Direct View TW
Direct View Tunable White
Direct View / RGBW / Cove Exterior
1ft (7W), 4ft (28W) / 300 lm/ft
Tunable White 2200K-6500K
UNV 120 - 277 VAC
180° viewing angle
IP66 Rated
1', 4'
Downloads
Spec Sheet Downloads
icon
SSL_DV.pdf
IES Downloads
icon
SSLDV_TW_IES_Data.zip
Install Instructions Downloads
icon
SSL_DVii.pdf
ColourLine Direct View RGBW
Direct View RGBW
RGBW / Direct View / Cove Exterior / Graze Exterior
1ft (7W), 4ft (28W) / 200 lm/ft
RGBW + ColourFULL
UNV 120 - 277 VAC
180° viewing angle
IP66
1', 4'
Downloads
Spec Sheet Downloads
icon
SSL_DV.pdf
IES Downloads
icon
SSLDV_RGBW_IES_Data.zip
Install Instructions Downloads
icon
SSL_DVii.pdf
CoveLine XL TW
2-Channel (CCT & 0-10V Dimming) Interior Luminaire
Cove Interior / Graze Interior / Direct View
700 lm/ft (9W/ft) / 1000 lm/ft (11.5 W/ft)
Tunable White 2700K–5700K
UNV 120 - 277 VAC
120°
IP20 Rated
1', 4'
Downloads
Spec Sheet Downloads
icon
CVLXTW.pdf
IES Downloads
icon
CVLXTW_IES_Data.zip
Install Instructions Downloads
icon
CVLXTWii.pdf
