ColourLine Lazer A
RGBA Super-Optic, Long-Throw LED

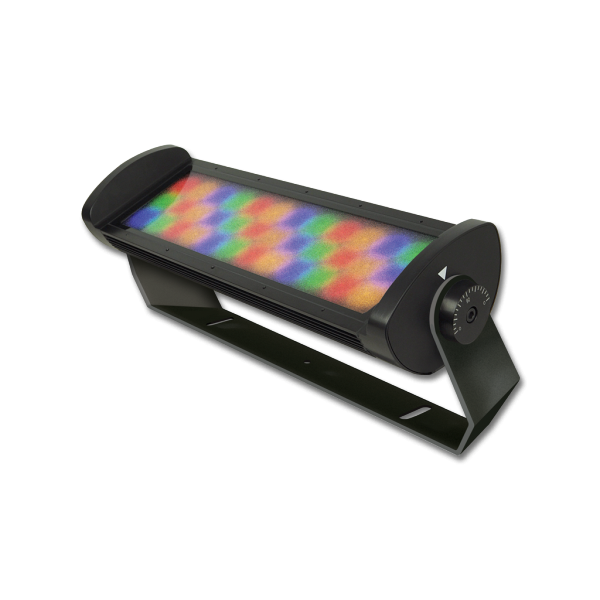

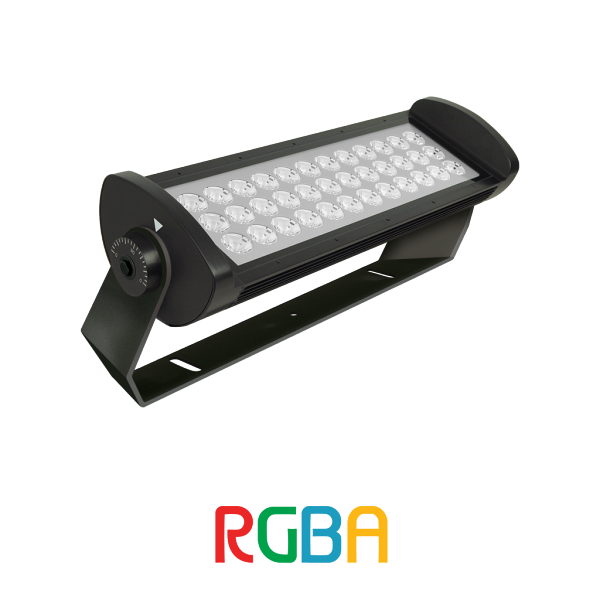

ColourLine Lazer RGBA

The ColourLine Lazer RGBA (CLZF) is part of our Lazer Series that uses our super optics to cast lighting extreme distances. RGBA is used for achieving warmer color tones in the lighter color range, wherein Amber LEDs are added with Red, Green, Blue to create richer more vibrant color tones in the yellow or warmer color spectrum. The RGBA color gamut is larger than RGB. RGB LEDs alone can achieve white and yellow color results, but not as well as and not with the intensity of RGBW (White) or RGBA (Amber). The result is a broader range of yellows and warmer tones to select from in that color space. ColourLine Lazer RGBA harnesses the latest standards in advanced RDM-DMX technology. That combined with it’s unique optical system offers one of the most impressive long-casting RGBA lighting solutions in the market. All SSL ColourLine products support the latest ESTA RDM and ACN standards.
Observe the three unique advancements in technology utilized by ColourLine Lazer Flood (CLZF).
 ColourClone (CC) - A robotic manufacturing process that calibrates every luminaire to the exact same X, Y color coordinate and generates a bar code. It’s perfect for adding future lumniaires, as well as matching a damaged one for replacement.  ColourSoft (CS) - Unlike standard 8-bit resolution for 256 step dimming, our 32-bit on-board MCU uses 16-bit resolution to provide 65,536 steps of resolution, while only using 8 bits of addressing space. A logarithmic delineation concentrates the resolution to the lower third of the dimming curve so low-end dimming and color transitions have zero flicker.  ColourMode (CM) - ColourMode uses Digital Dual Mode (DDM) technology to provide RGBW and Tunable White in a single luminaire. In DDM personality mode, the SSL firmware is designed to use 6 DMX channels. Channels 1-4 are reserved for RGBW and channels 5-6 are used for Tunable White, where channel 5 controls light intensity and channel 6 controls color temperature (CCT). To see our Lazer (White LEDs) click here.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Brochures
Brochures Downloads
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer A
ColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer AColourLine Lazer A

FEATURES & BENEFITS


Performance
3963 lumens (RGBA-full on) 100W (per module) @ 120V

CCT
RGBA (Amber)

Power Input
UNV 120 - 277 VAC

Control
Pharos controls | SSL ColourSelect controller | 3rd party DMX 512, RDM standard based control system

Mounting Options
Standard mounting is an integrated yoke system, mount up to 3 modules per yoke

Warranty
5-Year Limited Warranty

Optic Beam Options

10°
30°
60°
5°x50°
10°x40°
