ColourLine Lazer W
Long-Casting RGBW Modular Luminaire

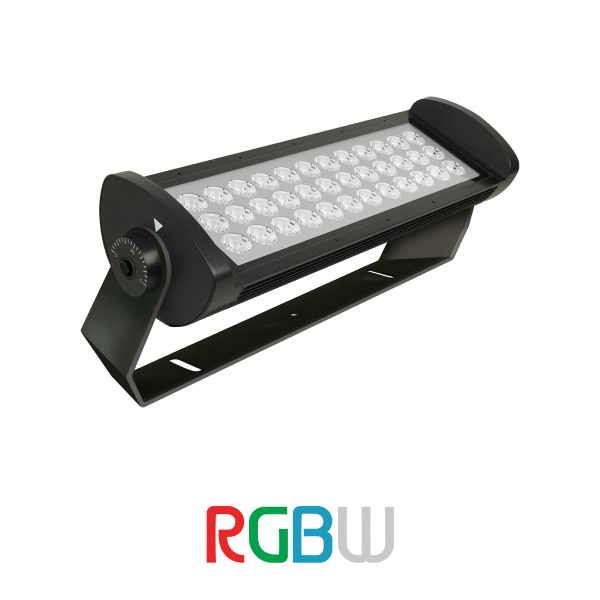

ColourLine Lazer RGBW

The ColourLine Lazer (CLZF) is part of our Lazer Series that uses our super optics to cast lighting extreme distances. It harnesses the latest standards in advanced RDM-DMX technology. That combined with it’s unique optical system offers one of the most impressive long-casting RGBW lighting solutions in the market. RGBW expands the standard RGB color gamut to a more robust spectrum of color choices, adding in beautiful pastels and increasing the visual gamut to 4.6 billion colors. All SSL ColourLine products support the latest ESTA RDM and ACN standards.



Observe the three unique advancements in technology utilized by ColourLine Lazer (CLZF).
 ColourClone (CC) - A robotic manufacturing process that calibrates every luminaire to the exact same X, Y color coordinate and generates a bar code. It’s perfect for adding future luminaires, as well as matching a damaged one for replacement.  ColourSoft (CS) - Unlike standard 8-bit resolution for 256 step dimming, our 32-bit on-board MCU uses 16-bit resolution to provide 65,536 steps of resolution, while only using 8 bits of addressing space. A logarithmic delineation concentrates the resolution to the lower third of the dimming curve so low-end dimming and color transitions have zero flicker.  ColourMode (CM) - ColourMode uses Digital Dual Mode (DDM) technology to provide RGBW and Tunable White in a single luminaire. In DDM personality mode, the SSL firmware is designed to use 6 DMX channels. Channels 1-4 are reserved for RGBW and channels 5-6 are used for Tunable White, where channel 5 controls light intensity and channel 6 controls color temperature (CCT). To see our Lazer (White LEDs) click here.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Brochures
Brochures Downloads
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer W
ColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer WColourLine Lazer W

FEATURES & BENEFITS


Performance
4650 lm (RGBW-full on) 100W
module

CCT
RGBW

Power Input
UNV 120 - 277 VAC

Control
Pharos controls | SSL ColourSelect controller | 3rd party DMX 512, RDM standard based control system

Mounting Options
Standard mounting is an integrated yoke system.

Warranty
5-Year Limited Warranty

Optic Beam Options

10°
30°
60°
5°x50°
10°x40°
