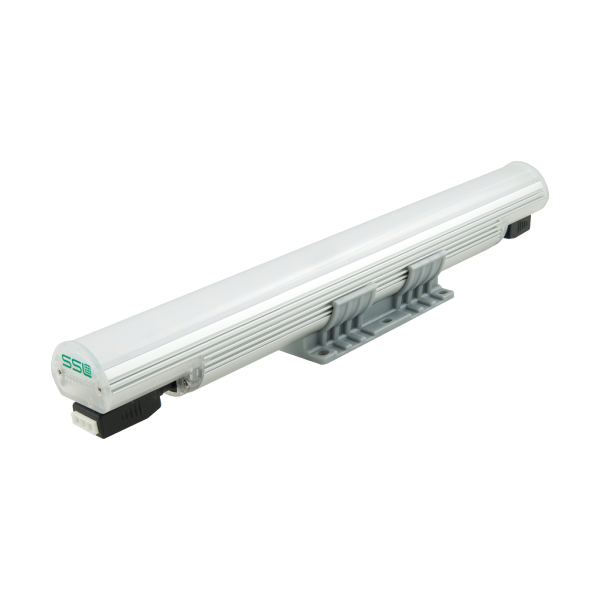

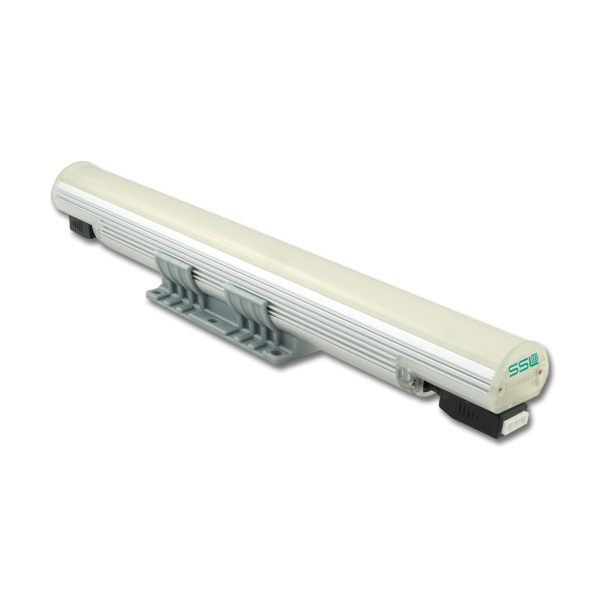

CoveLine WET
Power and Versatile Exterior Cove Luminaire
CoveLine WET (CVLWET) is a powerful and versatile exterior or interior cove LED luminaire, and comes in 1, 4, or 6 ft nominal lengths. Available with 2700K, 3000K, or 4000K color temperatures. One of the unique features of the CoveLine WET is it offers 9 optical solutions. The housing is constructed of extruded aluminum with tooled end caps and is IP66 rated for wet location. IP68 line voltage Plug N’ Play connectors make for easy installation. It has an integral power supply, so no remote driver is required. Universal orientation installation; up, down, horizontal or vertical luminaire positioning. It has flicker free dimming to 3% full brightness, electronic low-voltage (ELV) trailing edge and synchronized with soft shut-off.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
CoveLine WET
CoveLine WET
CoveLine WET
CoveLine WETCoveLine WETCoveLine WET

FEATURES & BENEFITS


Performance
905 lm/ft
790 lm/ft
762 lm/ft

CCT
2700K
3000K
4000K

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off.

Mounting Options
Universal orientation surface mounting with (+/– 15°) adjustable brackets, (ADB option +/– 80°).

Warranty
5-Year Limited Warranty

Optic Beam Options
10°
25°
40°
80°
120°
10°x40°
21ºx56º
30°x60°
67°x140°
