DualLine
DualLine Bi-directional Interior
DualLine (DL)

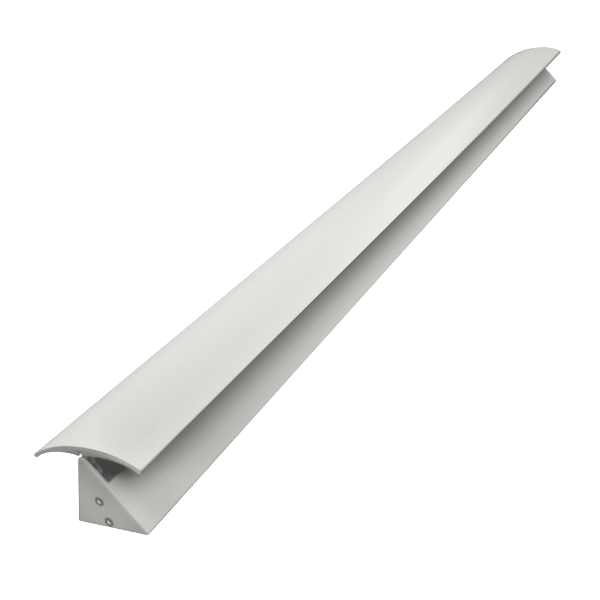

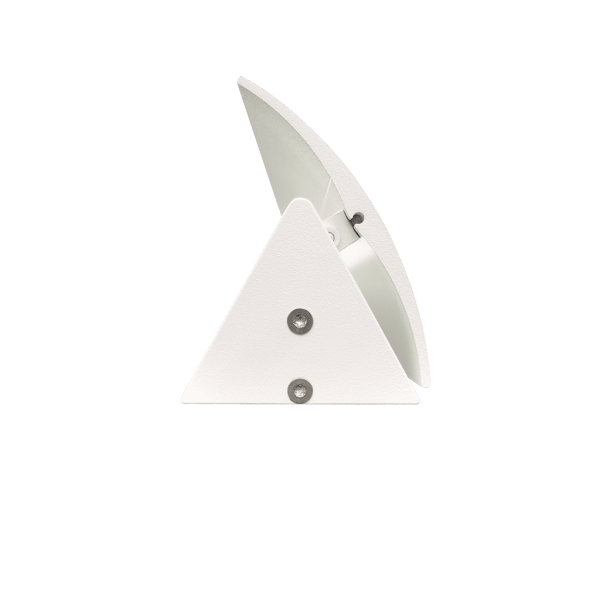

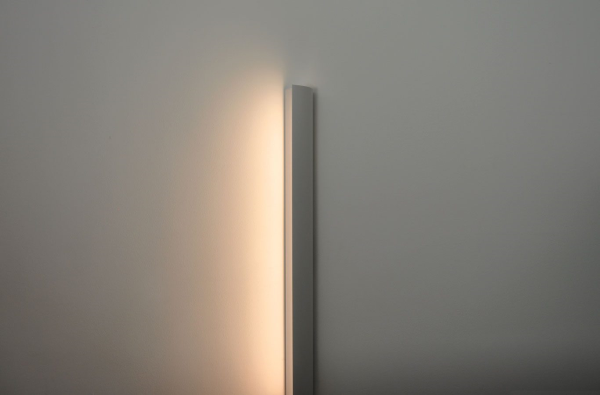

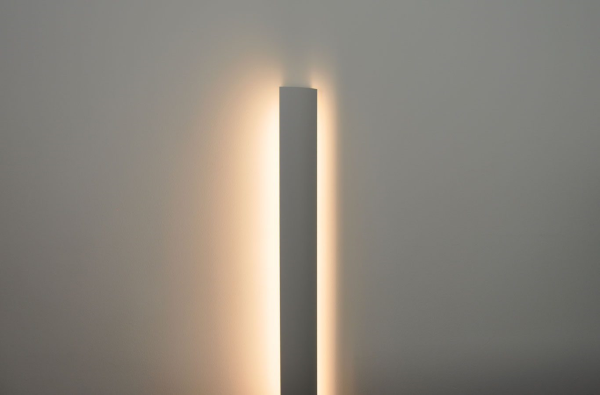

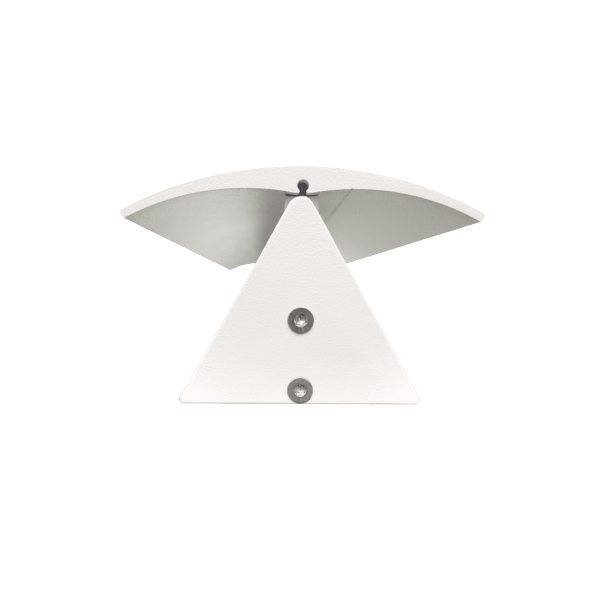

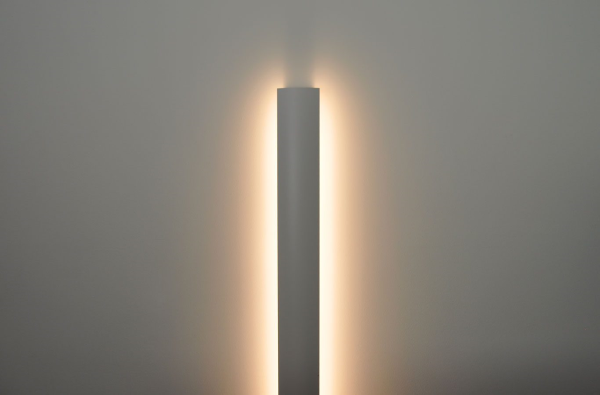

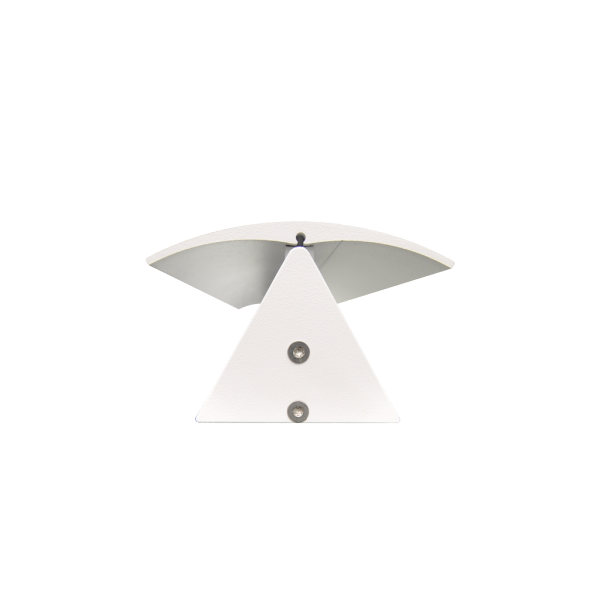

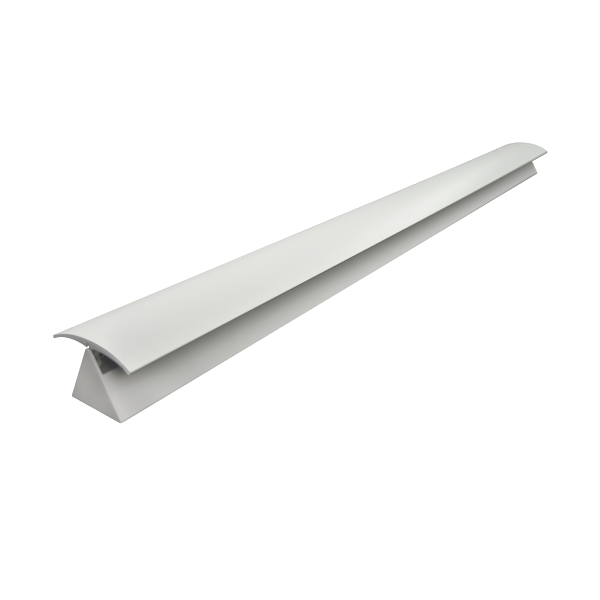

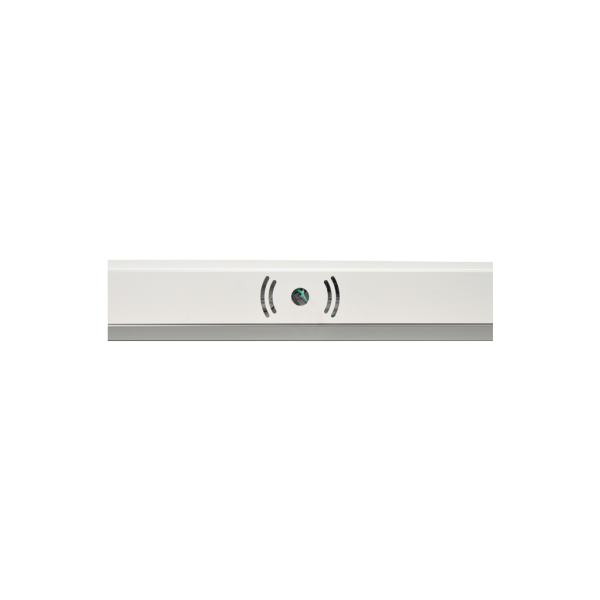

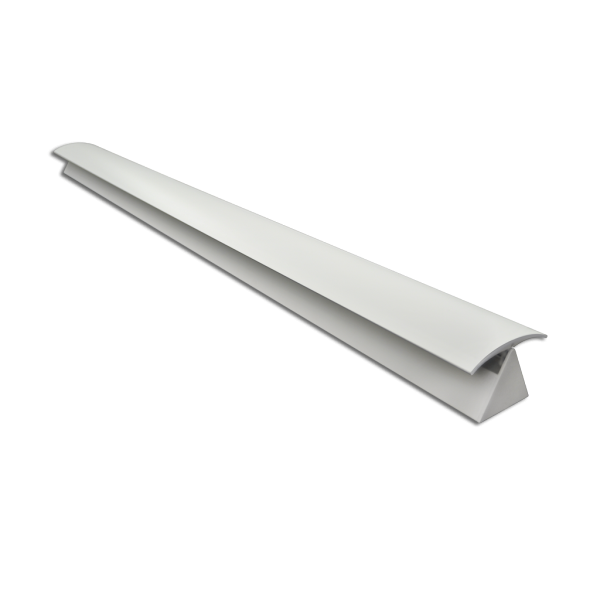

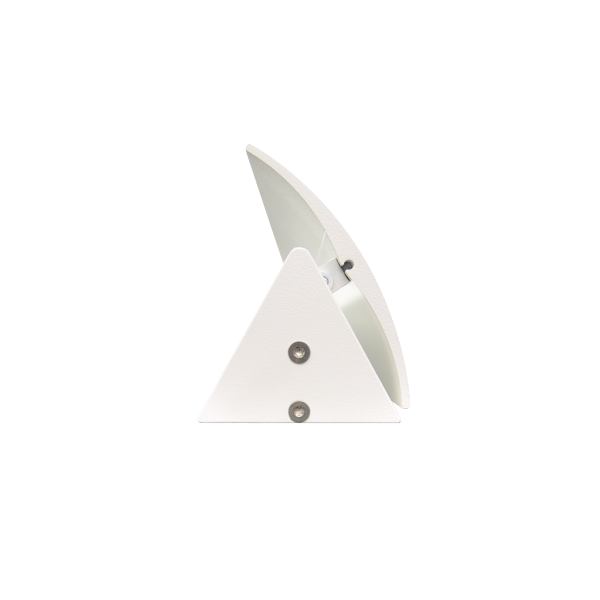

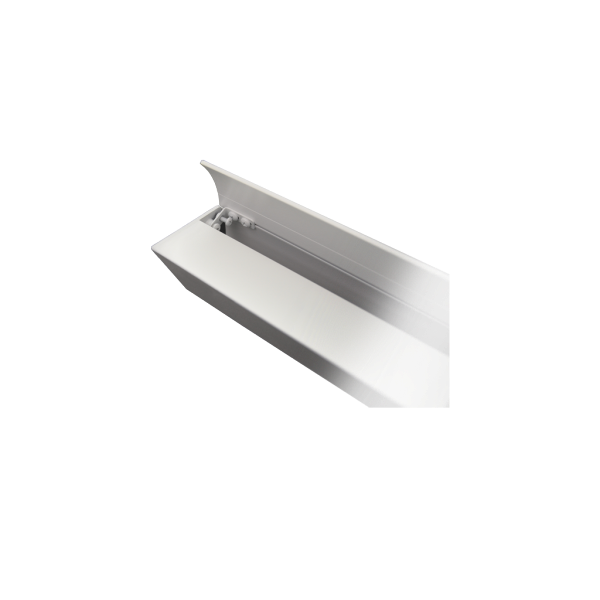

is a bi-directional wall mounted luminaire with an adjustable reflector to control the light beam. It provides indirect lighting to suit your interior design specifications and can be locked in place or left adjustable to an individual user. The DualLine is offered in 1 ft or 4 ft nominal lengths and available in 27K, 3K, 35K or 4K color temperatures. The housing is constructed of extruded aluminum with die-cast aluminum end caps and is IP20 rated for interior use only. This fixture has a Class II high-power factor (97%) integral power supply and flicker free dimming to 1% full brightness and ELV trailing edge. The back mounting plate attaches directly to a single gang J-box with extra supporting holes to secure it to the mounting surface.
Spec Sheet
Spec Sheet Downloads
DL.pdf
IES
IES Downloads
DL_IES_Data.zip
Install Instructions
Install Instructions Downloads
DLii.pdf
FEATURES & BENEFITS
Performance
270 lm/ft
6 W/ft
45 lm/W
CCT
2700K
3000K
3500K
4000K
Power Input
UNV 120 - 277 VAC
Control
ELV Dimmming
Mounting Options
Surface mounting with adjustable reflector
Warranty
5-Year Limited Warranty
