eCoveLine XL 0-10V
Economical 0-10V Dimming Interior Luminaire

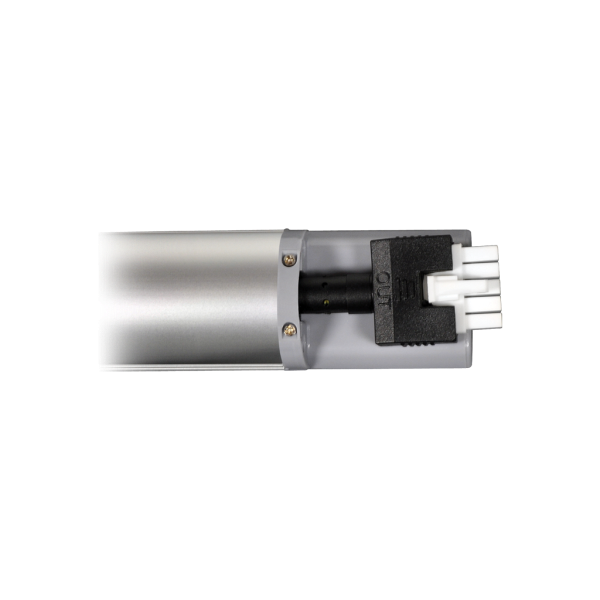

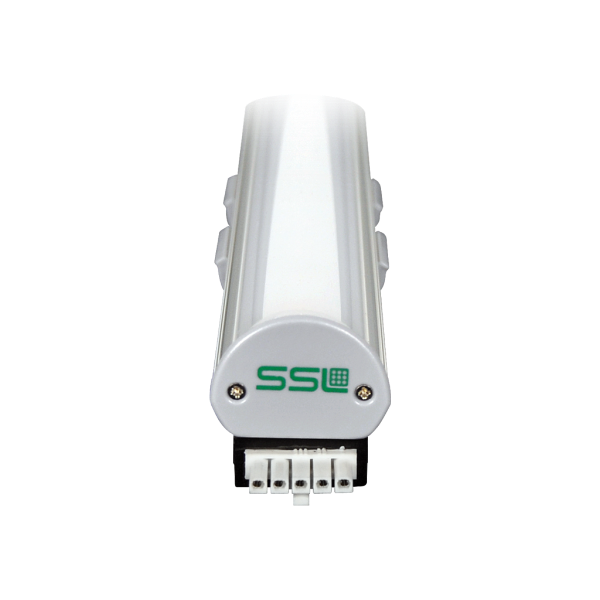

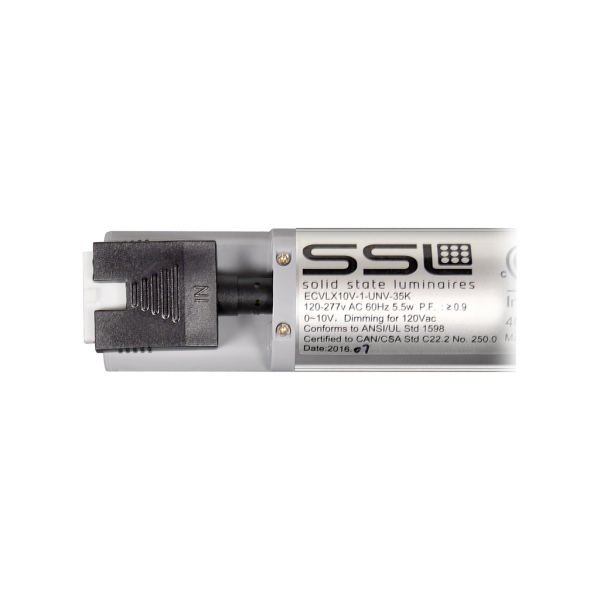

eCoveLine XL 0-10V (ECVLX10V) is an economical and versatile cove luminaire with built in 0-10V dimming driver. It is offered with two optical solutions of 60 x 60 degree or the standard 120 x 120 degree.  The rugged housing is constructed of extruded aluminum with tooled end caps and is IP20 rated for interior use only.  It offers 5-Pin “Plug N’ Play”  connectors for easy installation.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
eCoveLine XL 0-10V
eCoveLine XL 0-10V
eCoveLine XL 0-10V
eCoveLine XL 0-10V
eCoveLine XL 0-10V
eCoveLine XL 0-10VeCoveLine XL 0-10VeCoveLine XL 0-10VeCoveLine XL 0-10VeCoveLine XL 0-10V

FEATURES & BENEFITS


Performance
5.5W/ft Max
653 lm/ft

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC

Control
Provides standard 0-10V dimming, synchronized w/soft shut-off

Mounting Options
Surface Mount with (+/– 15°) adjustable brackets, (optional ADB2 Adj. Bracket +/– 90°)

Warranty
5-Year Limited Warranty

Optic Beam Options
120°
60°
