Mini CoveLine
Low-Profile Interior Luminaire

Mini CoveLine

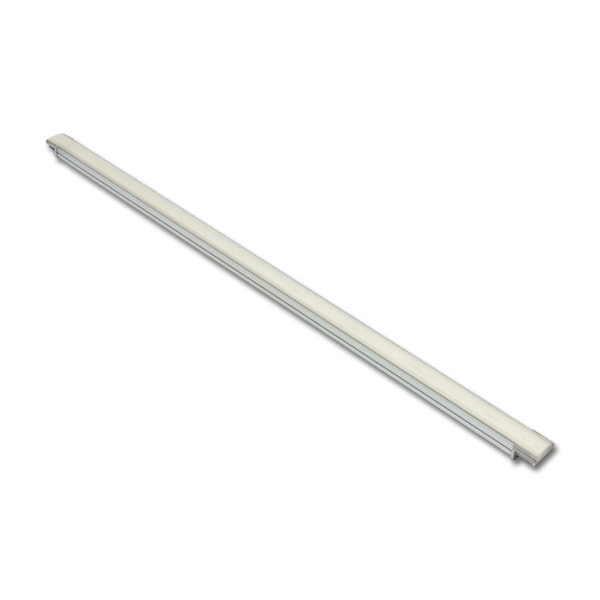

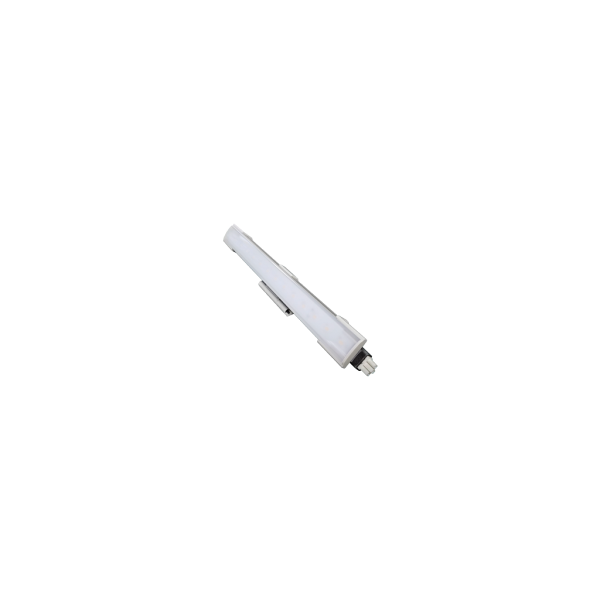

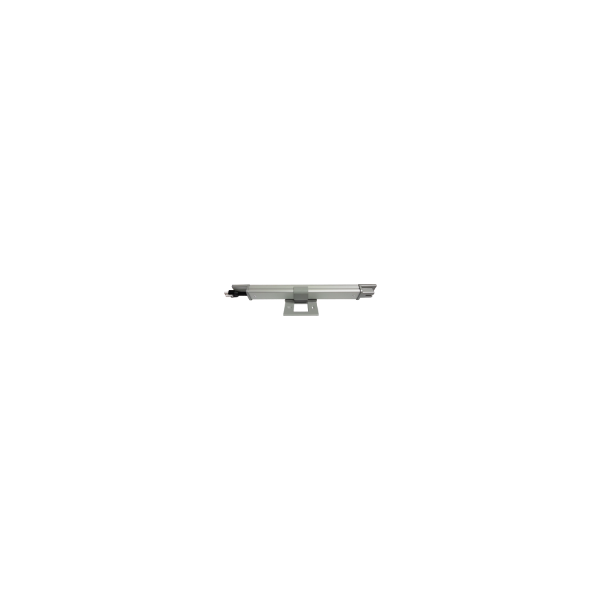

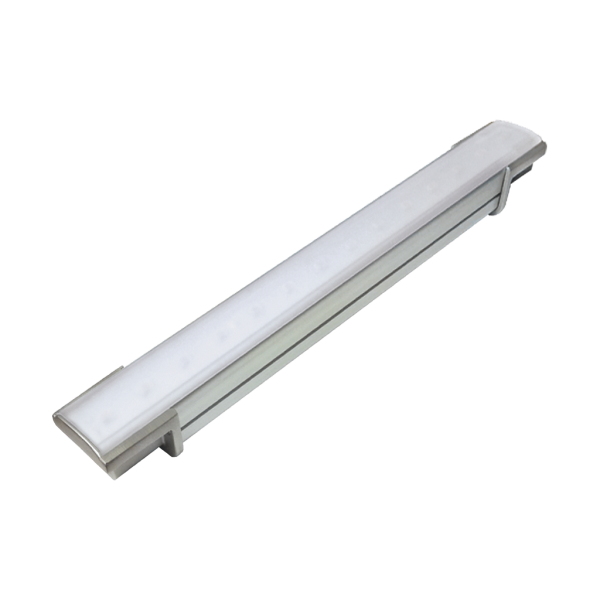

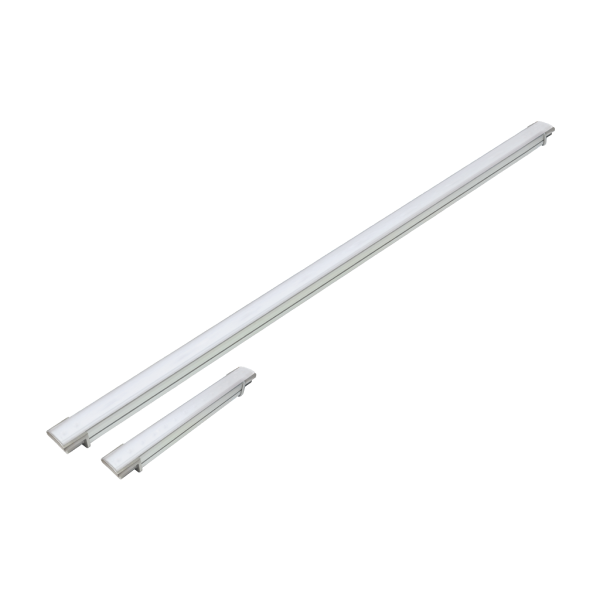

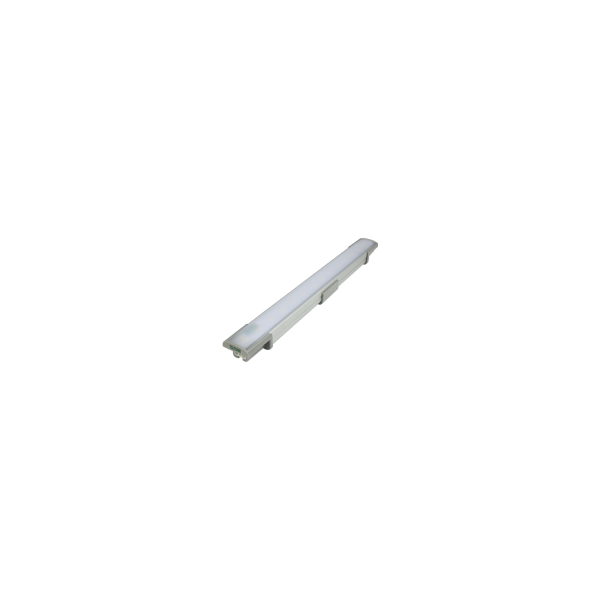

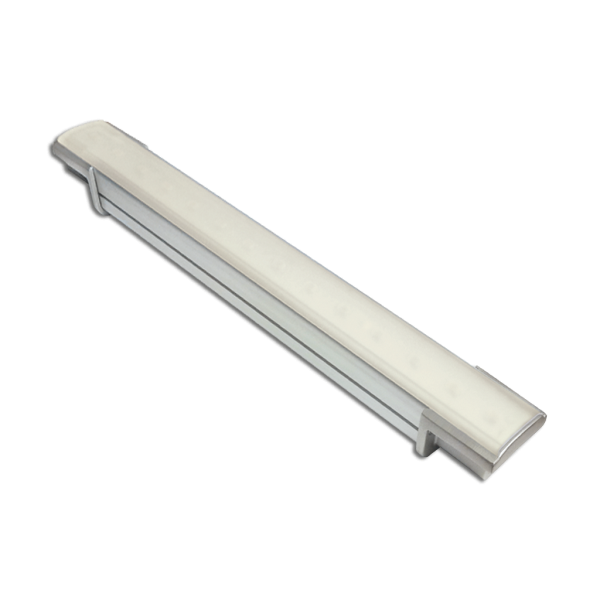

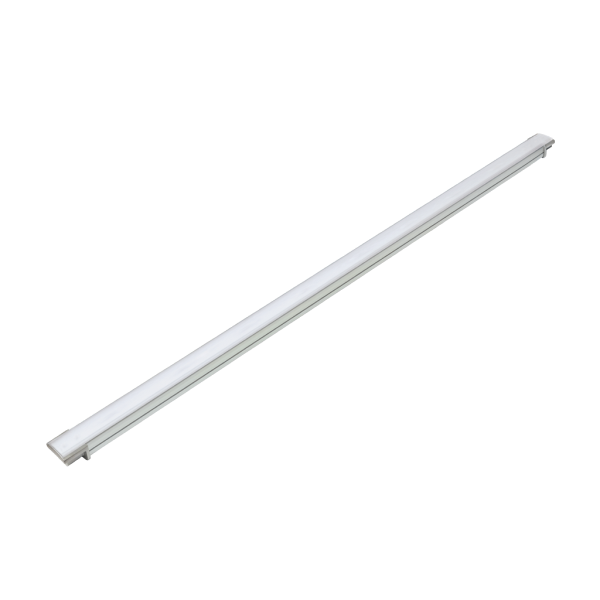

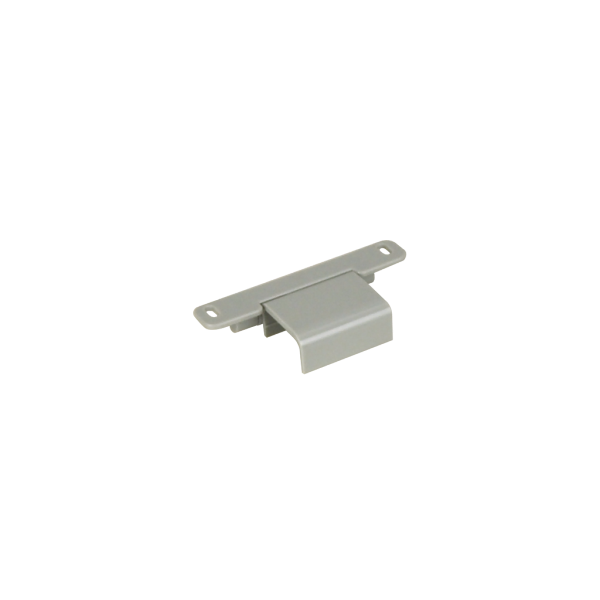

The Mini CoveLine (MC) LED is a very slim profile luminaire, less than 1 inch tall (.95"), that’s perfect for smaller spaces. The LEDs are available in 1 ft or 4 ft lengths with multiple color temperature choices: 27K, 3K, 35K or 4K. The housing is constructed of extruded aluminum with tooled end caps and is IP43 rated for interior applications. It features Plug N’ Play connectors for easy installation. Flicker free dimming to 0% full brightness with ELV trailing edge dimming. For easier installation it uses a 135° adjustable mounting bracket. It has a 15° incremental step adjustment with locking hex screw hinge. This fixture offers an LED cove lighting solution to satisfy the minimalist designer, the installation electrician and the buyer’s cost. Use Module to Convert ELV to 0-10V Dimming. Converts ELV to 0-10V signal for 0-10V Dimming protocol. (DIM0-10VELV).
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLine
Mini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLineMini CoveLine

FEATURES & BENEFITS


Performance
564 lm/ft (4000K)
5W/ft

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 0% full brightness, electronic low-voltage (ELV) trailing edge, synchronized with soft shut-off.

Mounting Options
Surface Mounting with 135° Rotation

Warranty
5-Year Limited Warranty

Optic Beam Options
60°
120°
