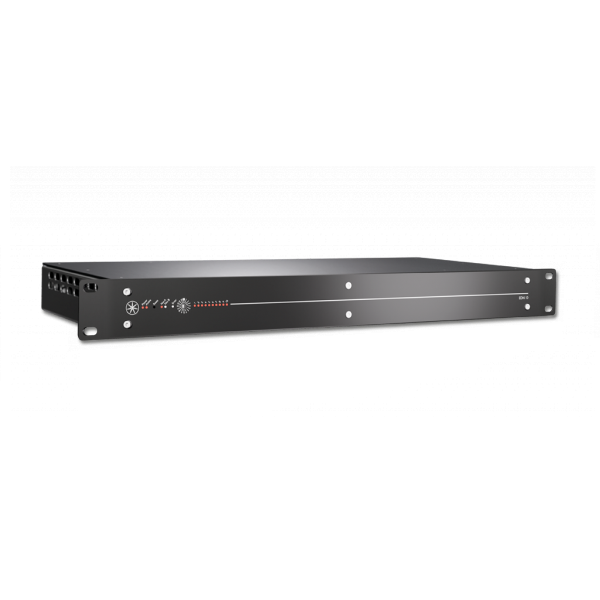

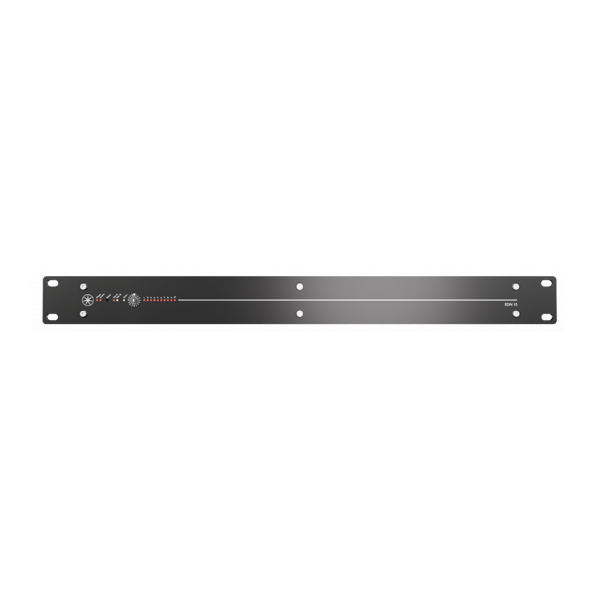

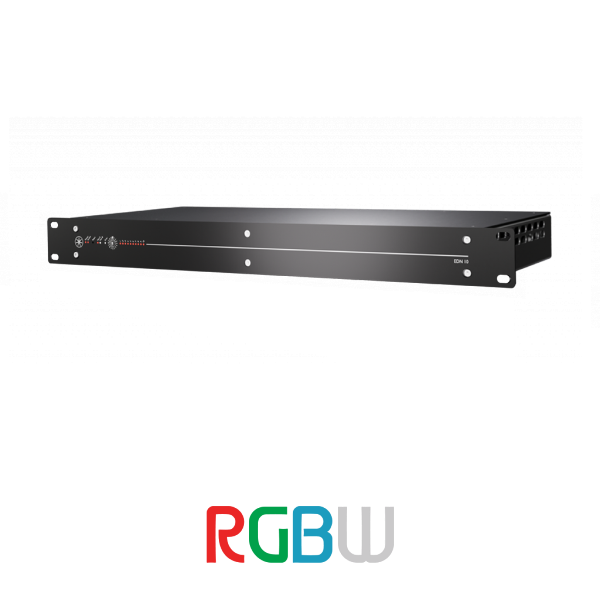

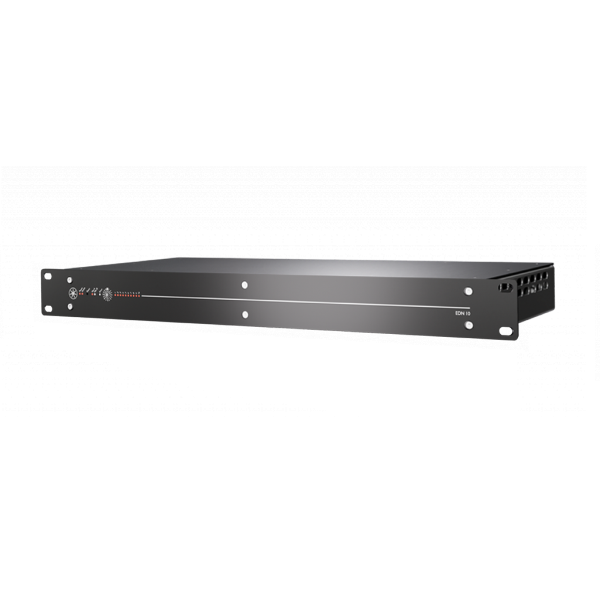

Pharos Designer EDN-10/-20
Ethernet Data Node

Pharos Designer Ethernet Data Node (EDN) is a convenient and scalable solution, providing cost-effective Ethernet distributed DMX ports for large control projects. The Pharos EDN is an easily configurable networking node that is specifically designed to add physical DMX ports to Pharos Designer Controllers and integrates natively with the full Pharos Designer range. Extremely compact, it packs up to 20 DMX512 output ports into a 1U 19” form factor. For higher port count installations, nodes can be daisy-chained to provide as many physical DMX ports as you need. EDNs are discoverable through Pharos Designer software and associated to a Controller to be seamlessly configured as part of your patch. Ports can be flexibly assigned to any Designer Controller in your project providing an elegant data distribution solution over an Ethernet network with minimal setup required.

Spec Sheet
Spec Sheet Downloads
Brochures
Brochures Downloads
Pharos Designer EDN-10/-20
Pharos Designer EDN-10/-20
Pharos Designer EDN-10/-20
Pharos Designer EDN-10/-20
Pharos Designer EDN-10/-20
Pharos Designer EDN-10/-20
Pharos Designer EDN-10/-20Pharos Designer EDN-10/-20Pharos Designer EDN-10/-20Pharos Designer EDN-10/-20Pharos Designer EDN-10/-20Pharos Designer EDN-10/-20

FEATURES & BENEFITS


Performance

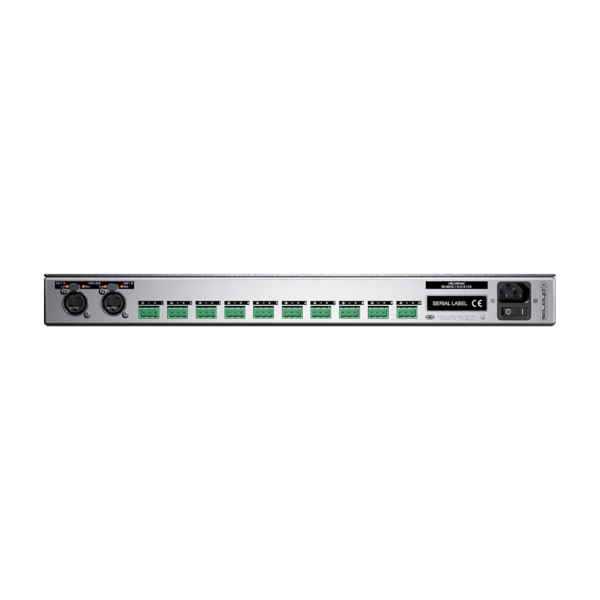

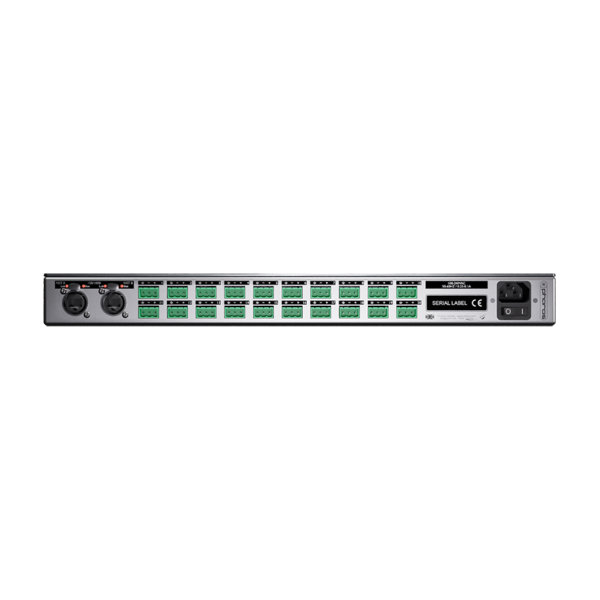

10/20 DMX Ports, 2 Ethernet Ports

Power Input
120 VAC

Control
DMX, RDM, Ultra DMX, SPI

Mounting Options
Rack Mount enclosure
