SSF2109

9" Round RGBW Flood Light

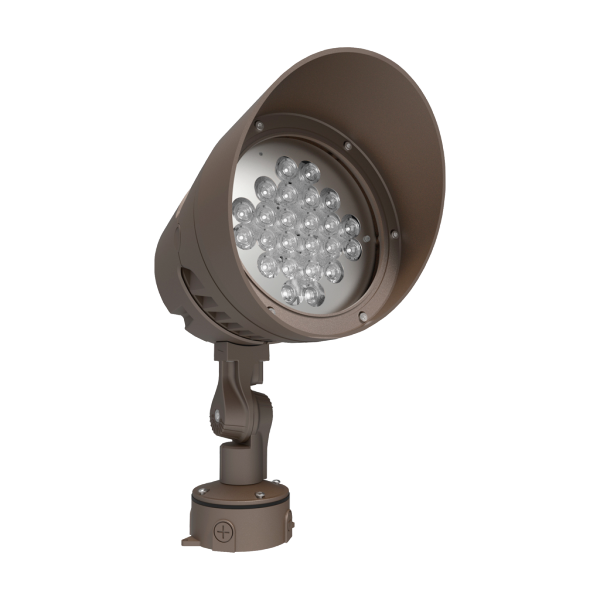

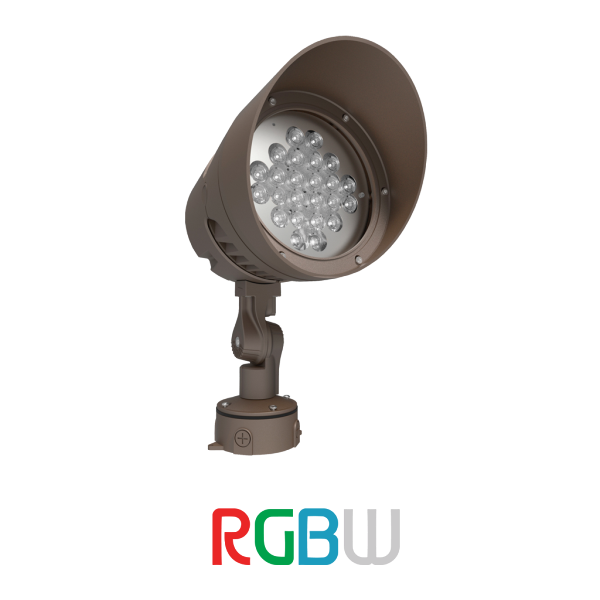

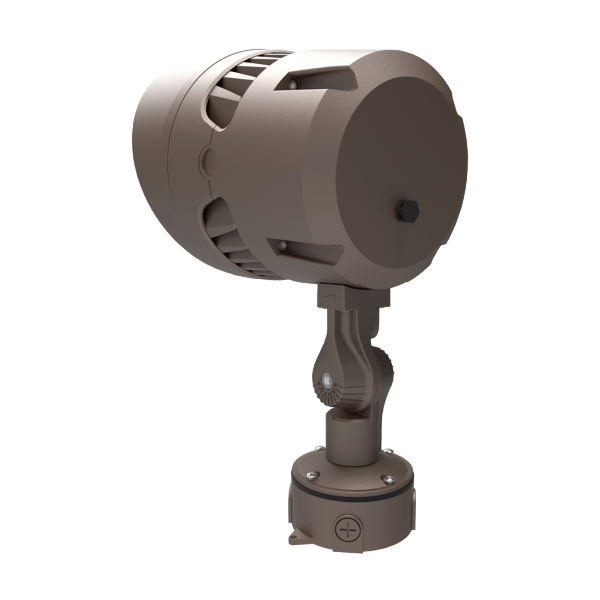

SSF2109 RGBW Flood Light

SSF2109 RGBW Flood Light in the Solid State Luminaires ColourLine™ Flood Series is a 9" round, RGBW controllable luminaire that provides superior color control and the widest range of mounting options in the industry. The SSF2109 has the ability to control 4.6 billion colors including RGBW and tuneable white. The integral driver is 120 - 277 VAC universal voltage allowing installation adaptability. Our wide range of optical accessories and mounting options sets the stage for ideal solutions to every design lighting project.

Observe the four unique advancements in technology utilized by our ColourLine Fixtures.

ColourQuick (CQ) - ColourLine RGBW Luminaires provide the quickest color mixing in the industry. The SSL ColourQuick technology enables our luminaires to mix instantaneously, within one inch.  ColourClone (CC) - As part of our manufacturing process, SSL Automated Manufacturing Robots calibrate every luminaire to the exact same X,Y color coordinates to provide Step-1 like consistency. This process enables every luminaire to be an exact clone. At the end of the process, a bar code is generated for every board. This allows for exact matching for job add-ons or warranty replacements.  ColourSoft (CS) - Standard dimming technology uses 8-bit resolution for 256 individual steps. Our 32-bit on-board MCU uses SSL developed software to provide 16-bit resolution that allows 65,536 steps of resolution and only use 8-bits of addressing space! We also use a logarithmic delineation of the resolution to concentrate in the lower third of the dimming curve so the low-end dimming and color transitions have zero flicker.  ColourMode (CM) - SSL uses Digital Dual Mode (DDM) technology to provide RGBW and Tuneable White in one fixture! SSL firmware is designed to use 6 DMX channels in the DDM Personality Mode. Maximum Mood Enhancement is available to use for any type of environment. Channels 1-4 are reserved for RGBW. Channels 5-6 are used for White color tuning. Channel 5 controls intensity, channel 6 controls White color.
