0-10V to ELV Dimming Module
Convert 0-10V Dimming to ELV Dimming

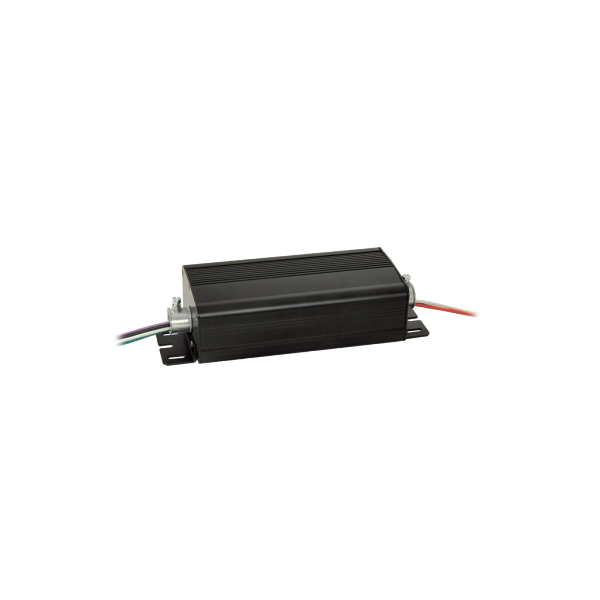

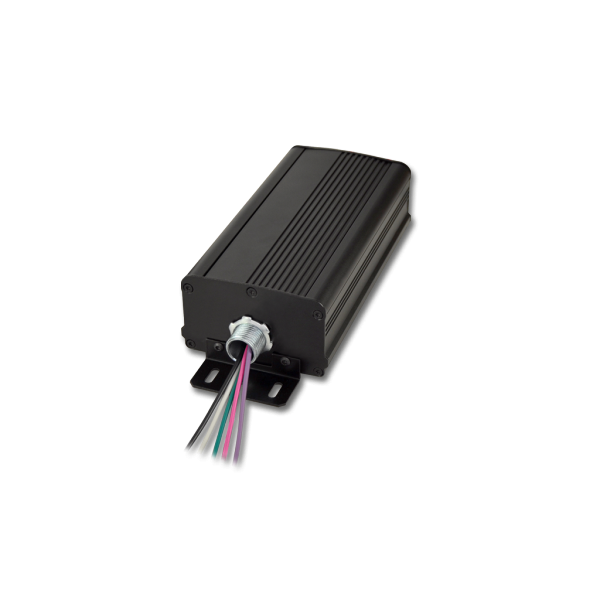

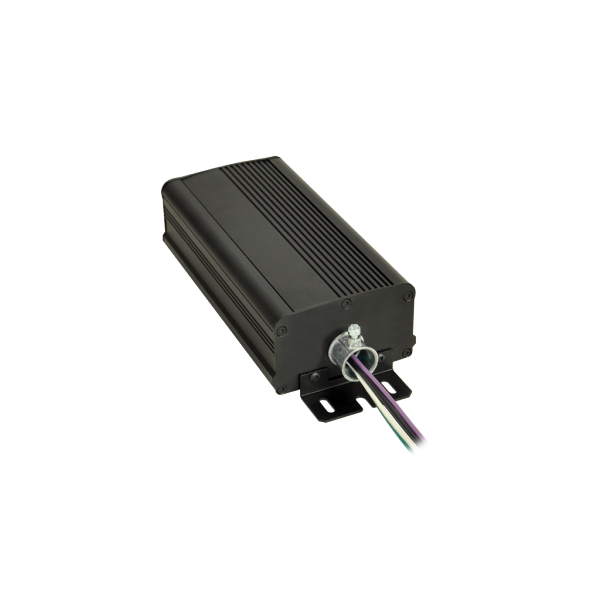

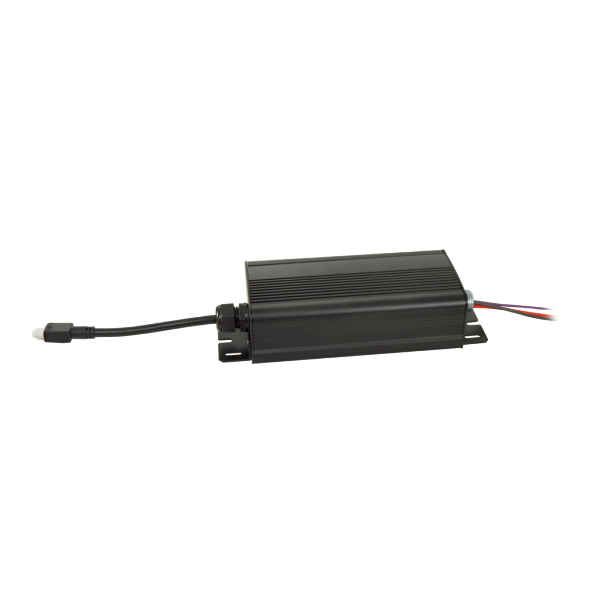

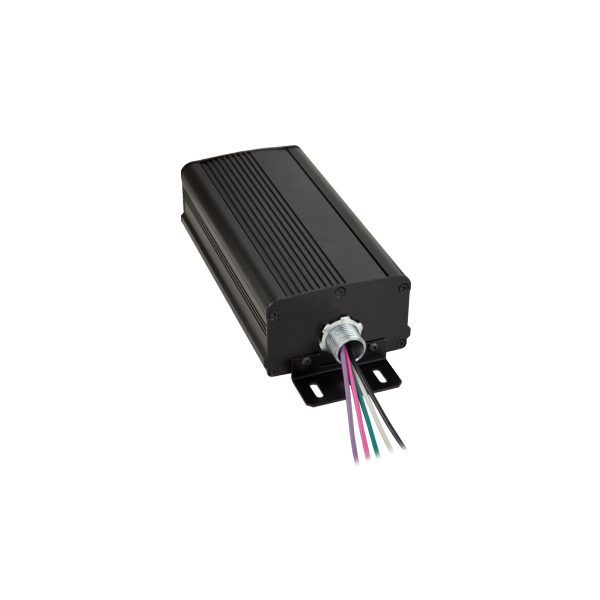

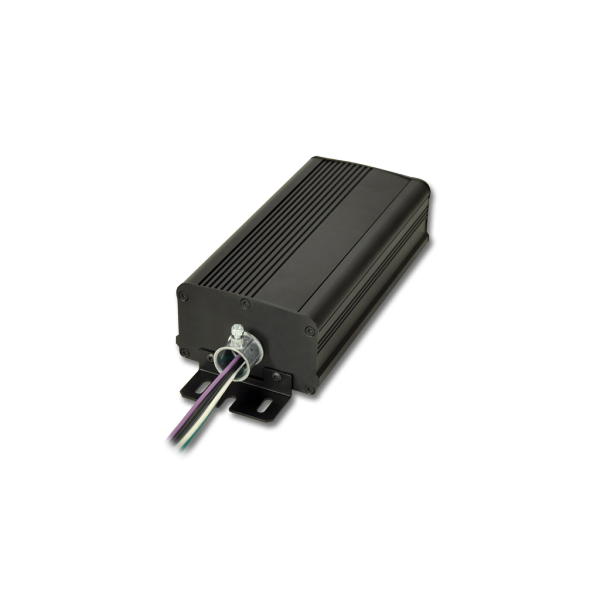

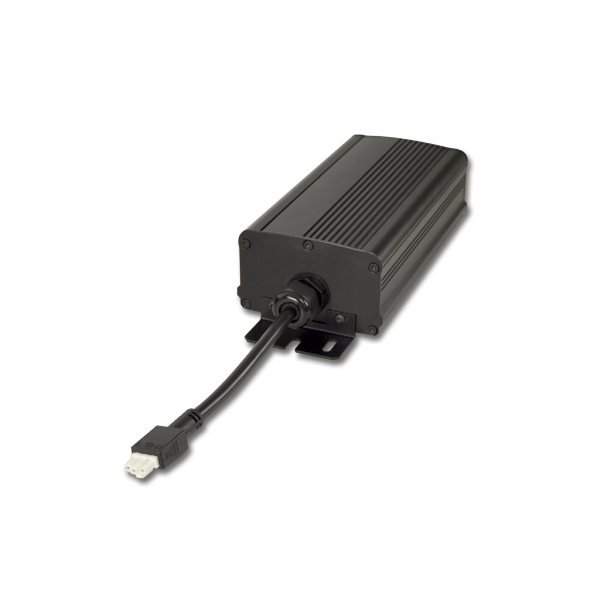

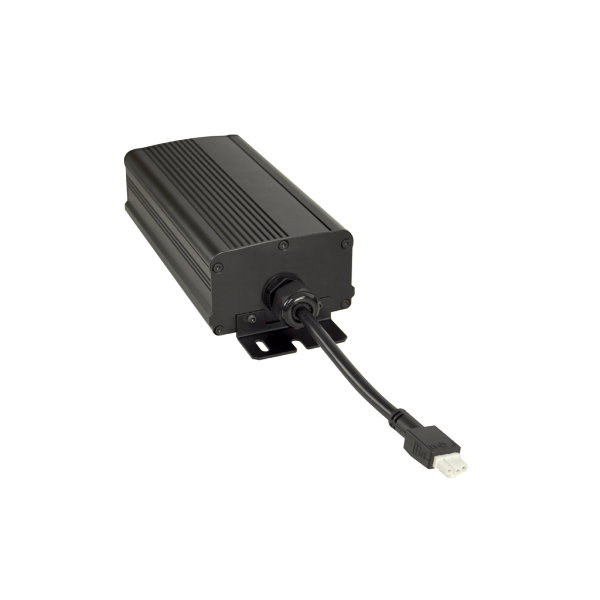

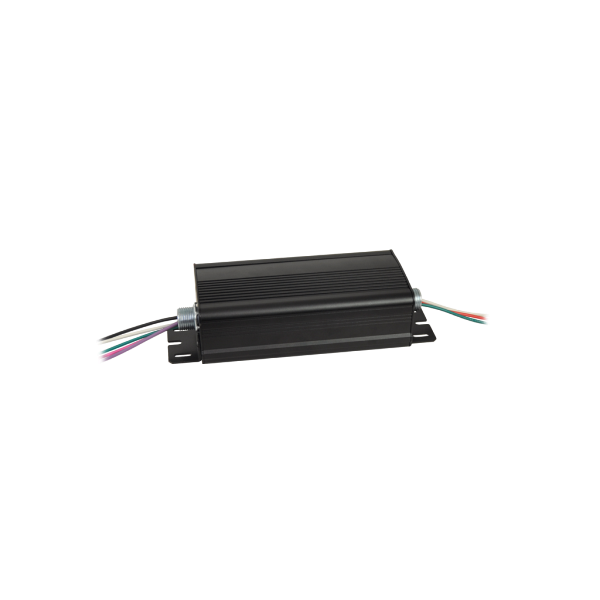

0-10V to ELV Dimming Module (DIM0-10ELV) is a dimming module that converts a 0-10V dimming signal to an ELV (electronic low-voltage) reverse phase dimming signal for ELV dimmable lighting products. It allows the use of standard 0-10V dimming control dimmers with ELV dimmable lighting products, and smoothly dims down to 1%. This module features a higher than standard Wattage rating at 800W @ 120 VAC, 1800W @ 277 VAC. Offered with three different connection options for simple installation. Light luminaires require one module per luminaire run.
Spec Sheet
Spec Sheet Downloads
Install Instructions
Install Instructions Downloads
Brochures
Brochures Downloads
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module
0-10V to ELV Dimming Module0-10V to ELV Dimming Module0-10V to ELV Dimming Module0-10V to ELV Dimming Module0-10V to ELV Dimming Module0-10V to ELV Dimming Module0-10V to ELV Dimming Module0-10V to ELV Dimming Module0-10V to ELV Dimming Module

FEATURES & BENEFITS


Performance
800W @ 120 VAC
1800W @ 277 VAC

Power Input
UNV 120 - 277 VAC

Control
Dimming control module: 0-10V to ELV Dimming Converter (1 module per luminaire run)

Mounting Options
Wall & Ceiling Mount, and Conduit options, simple installation, direct J-Box Mount

Warranty
5-Year Limited Warranty
