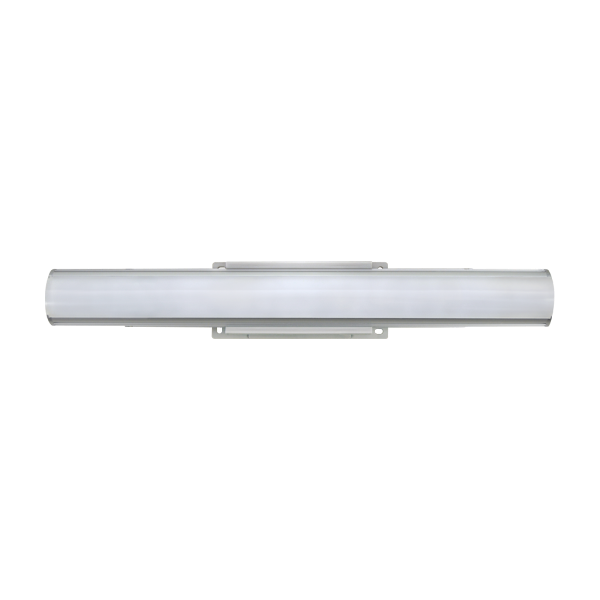

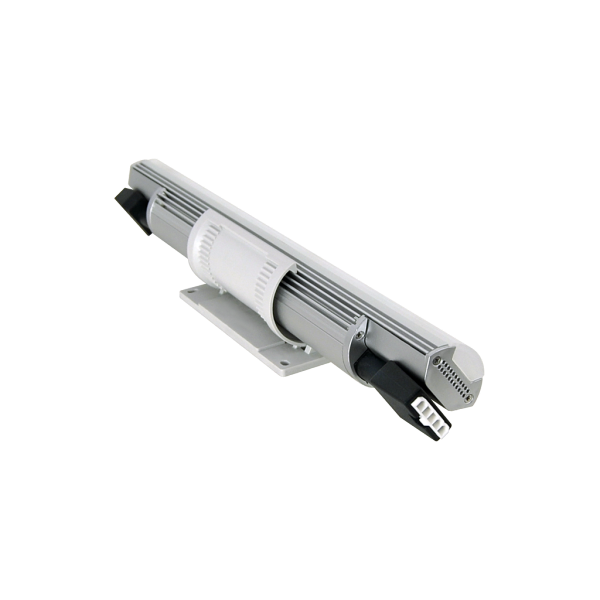

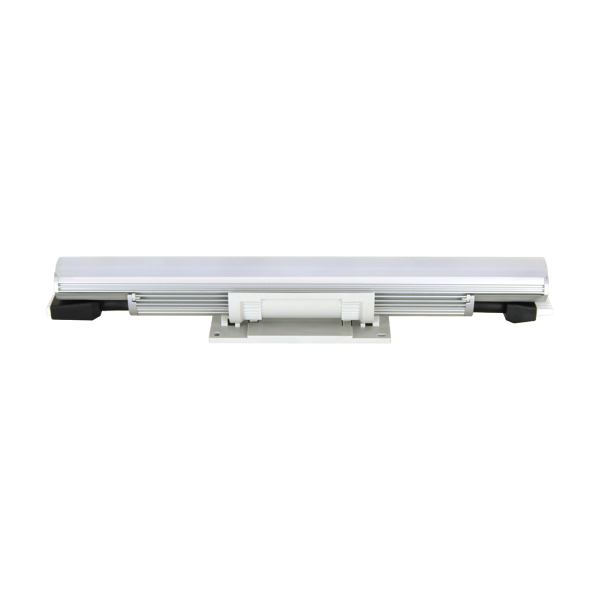

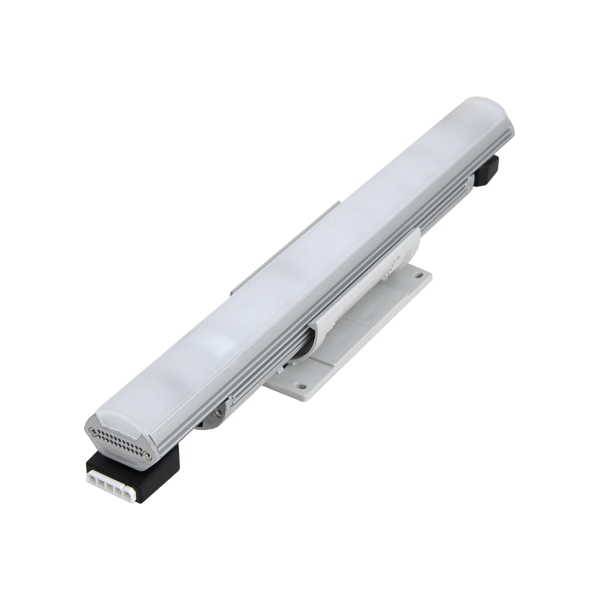

ColourLine Cove
High Output Interior RGBW

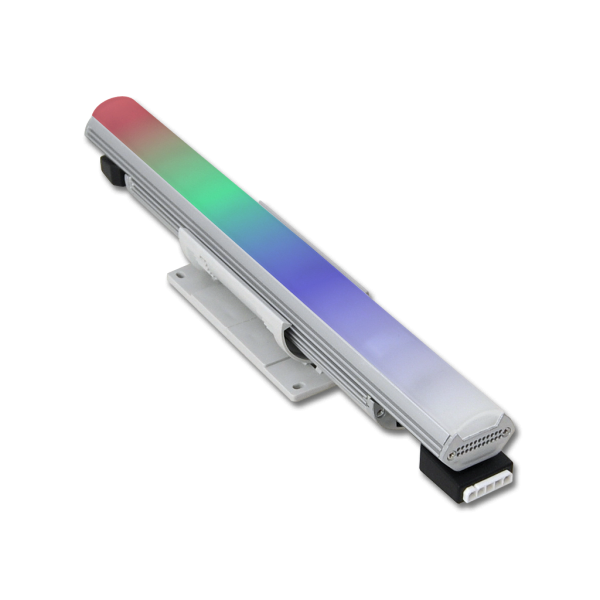

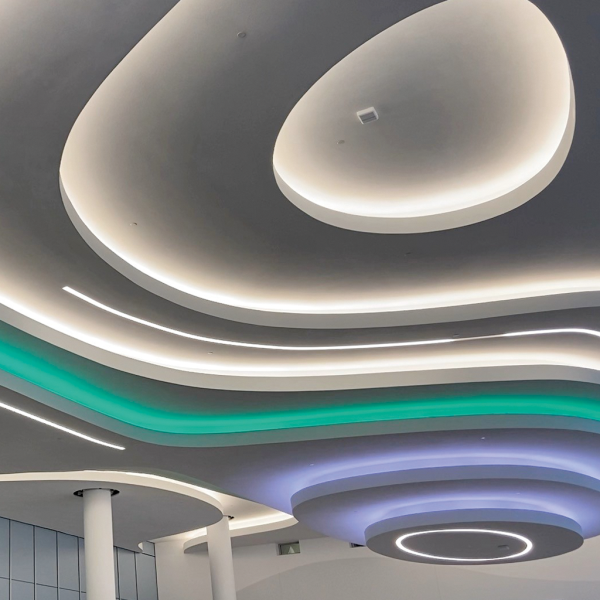

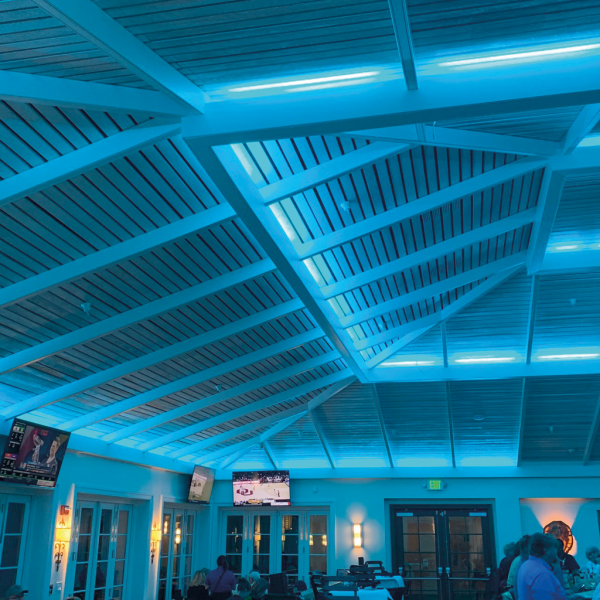

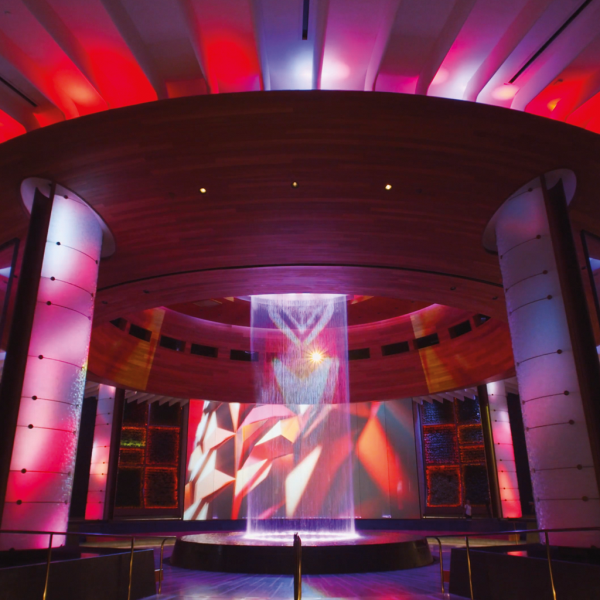

ColourLine Cove RGBW (CLCV) is a high output, interior luminaire addition to the Solid State Luminaires, ColourLine product category. CLCV offers a complete solution for dynamic, color changing effects providing RGBW illumination for interior cove applications requiring consistent, even lighting. The ColourLine RGBW family uses SSL developed firmware that is tested to the most current industry standard version of RDM. This technology allows our fixtures to interoperate with leading controllers and presents ease of configuration. Easily installs in a variety of applications with an adjustable base and plug-n-play connectivity. The small profile, sturdy construction and beautiful wall grazing effects make the CLCV a perfect product for a variety of lighting solutions. colourLine RGBW 4 Unique Features in One
Observe the four unique advancements in technology utilized by our ColourLine Fixtures.
ColourQuick (CQ) - ColourLine RGBW Fixtures provide the quickest color mixing in the industry. The SSL ColourQuick technology enables our ColourLine Interior Cove and Grazer to mix instantaneously, within one inch.  ColourClone (CC) - As part of our manufacturing process, SSL Automated Manufacturing Robots calibrate every fixture to the exact same X,Y color coordinates to provide Step-1 like consistency. This process enables every fixture to be an exact clone. At the end of the process, a bar code is generated for every board. This allows for exact matching for job add-ons or warranty replacements.  ColourSoft (CS) - Standard dimming technology uses 8-bit resolution for 256 individual steps. Our 32-bit on-board MCU uses SSL developed software to provide 16-bit resolution that allows 65,536 steps of resolution and only use 8-bits of addressing space! We also use a logarithmic delineation of the resolution to concentrate in the lower third of the dimming curve so the low-end dimming and color transitions have zero flicker.  ColourMode (CM) - SSL uses Digital Dual Mode (DDM) technology to provide RGBW and Tuneable White in one fixture! SSL firmware is designed to use 6 DMX channels in the DDM Personality Mode. Maximum Mood Enhancement is available to use for any type of environment. Channels 1-4 are reserved for RGBW. Channels 5-6 are used for White color tuning. Channel 5 controls intensity, channel 6 controls White color.
Spec Sheet
Spec Sheet Downloads
IES
Install Instructions
Install Instructions Downloads
ColourLine Cove
ColourLine Cove
ColourLine Cove
ColourLine Cove
ColourLine Cove
ColourLine Cove
ColourLine Cove
ColourLine CoveColourLine CoveColourLine CoveColourLine CoveColourLine CoveColourLine CoveColourLine Cove

FEATURES & BENEFITS


Performance
550 lm/ft (14W/ft)
381 lm/ft (9W/ft)
212 lm/ft (5W/ft)

CCT

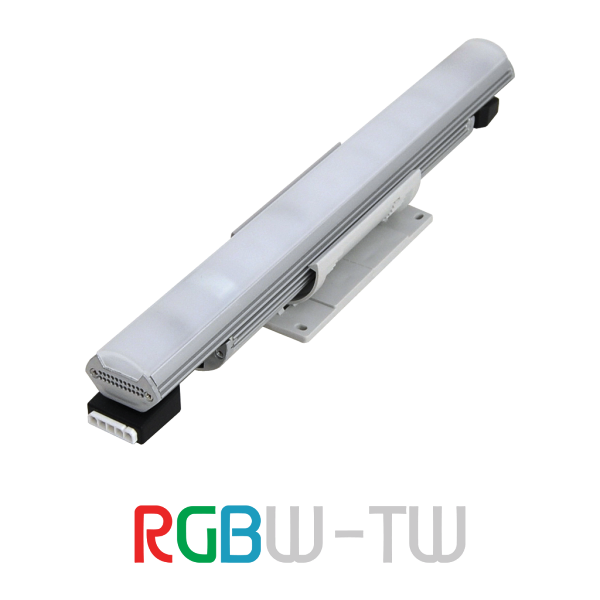

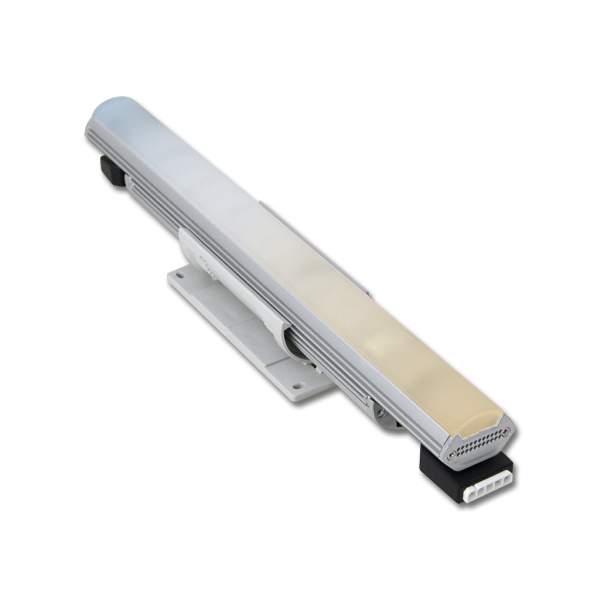

RGBW + Tuneable White in One

Power Input
UNV 120 - 277 VAC

Control
RGBW Controllers - 512 DMX, ESTA RDM and ACN standards

Mounting Options
Standard 180° adjustable bracket

Warranty
5-Year Limited Warranty

Optic Beam Options
110°
