ColourLine Direct View RGBW
Direct View RGBW

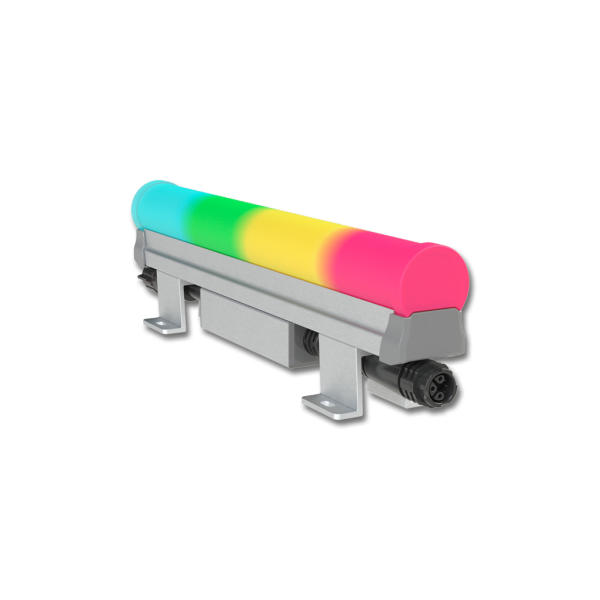

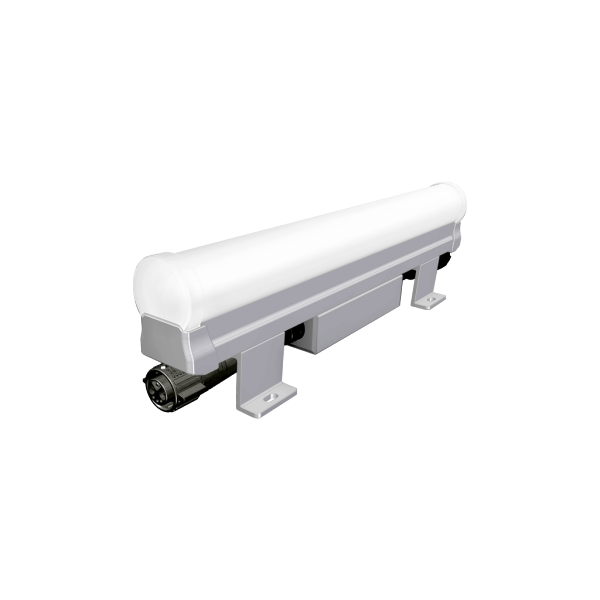

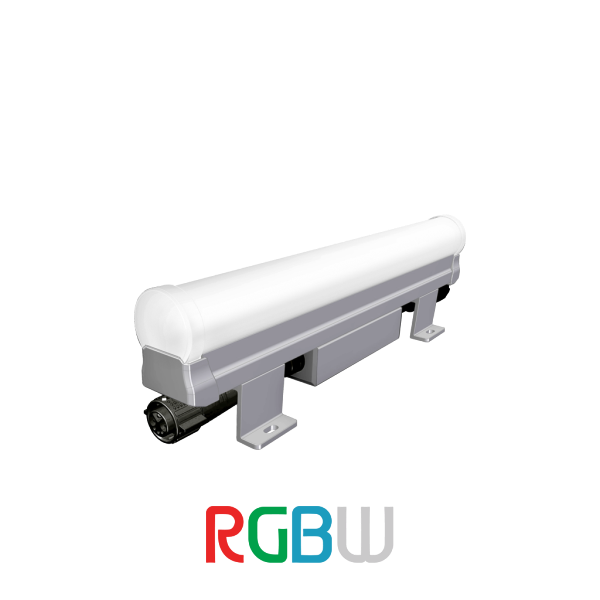

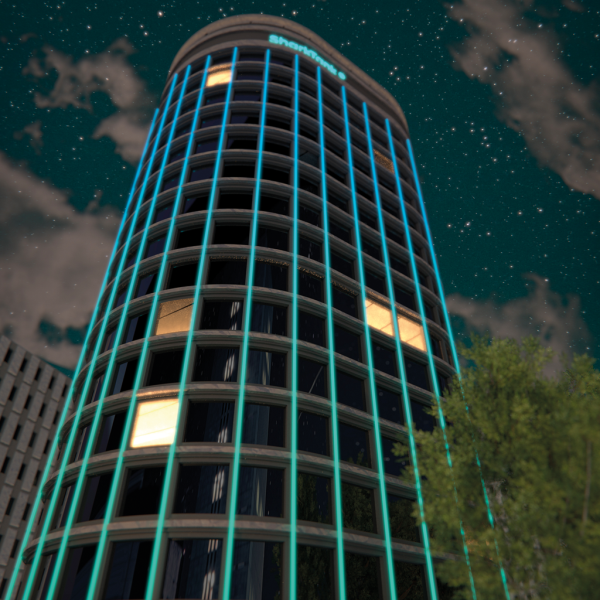

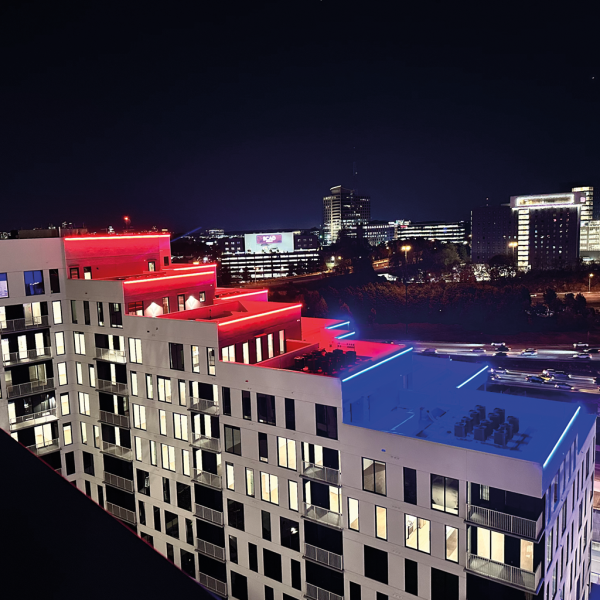

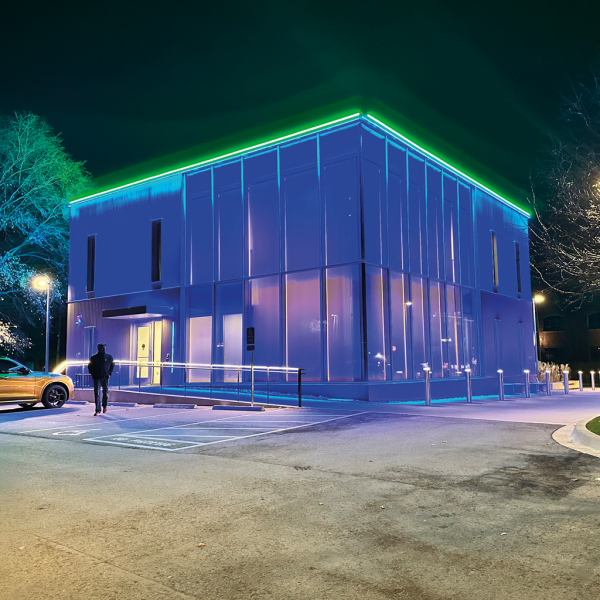

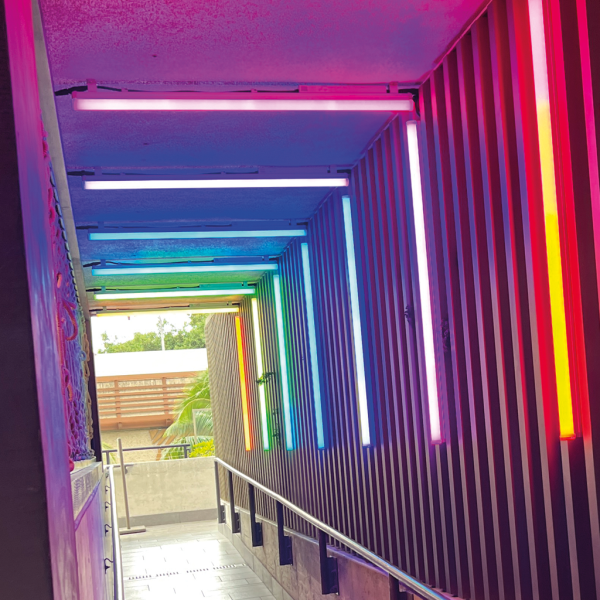

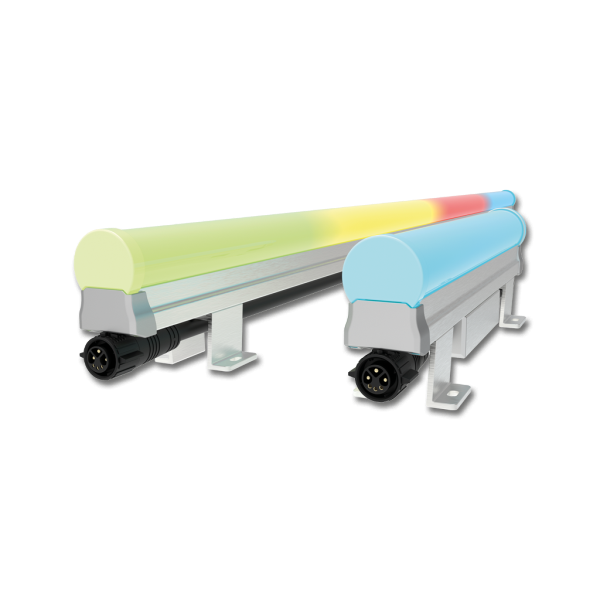

ColourLine Direct View RGBW (SSL-DV) is a dynamic exterior direct view luminaire, perfect for creating long ribbons of dynamic lighting. Twelve (12) inch resolution creates engaging visual effects in any architectural, retail, or entertainment setting. ColourLine Direct View RGBW is available in RGBW output, 1- and 4-foot lengths, and 12-inch resolution. All versions are IK10 impact resistant, UV stabilized polycarbonate lens, and IP66 dry, damp, and wet location rated. With a 120 - 277 VAC integral power supply and DMX / RDM protocols for control, luminaire power and data connectors are “push-lock” for simple installation.





ColourFULL – ColourFULL enhanced luminaires provide maximum output at all times at all colors, so your application receives the maximum output and uniformity. ColourQuick (CQ) –provide the quickest color mixing in the industry. The SSL ColourQuick technology enables our luminaires to mix instantaneously, at the luminaire lens ColourClone (CC) – A robotic manufacturing process that calibrates every luminaire to the exact same X, Y color coordinate and generates a bar code. It’s perfect for adding future luminaires, as well as matching a damaged one for replacement. ColourSoft (CS) – Unlike standard 8-bit resolution for 256 step dimming, our 32-bit on-board MCU uses 16-bit resolution to provide 65,536 steps of resolution, while only using 8 bits of addressing space. A logarithmic delineation concentrates the resolution to the lower third of the dimming curve so low-end dimming and color transitions have zero flicker

Spec Sheet
Spec Sheet Downloads
IES
Install Instructions
Install Instructions Downloads
ColourLine Direct View RGBW
ColourLine Direct View RGBW
ColourLine Direct View RGBW
ColourLine Direct View RGBW
ColourLine Direct View RGBWColourLine Direct View RGBWColourLine Direct View RGBWColourLine Direct View RGBW

FEATURES & BENEFITS


Performance
200 lm/ft
1ft (7W), 4ft (28W)

CCT
RGBW + ColourFULL

Power Input
UNV 120 - 277 VAC

Control
DMX512

Mounting Options
Integrated Mounting Bracket with Safety Tether

Warranty
5-Year Limited Warranty

Optic Beam Options
180° viewing angle
