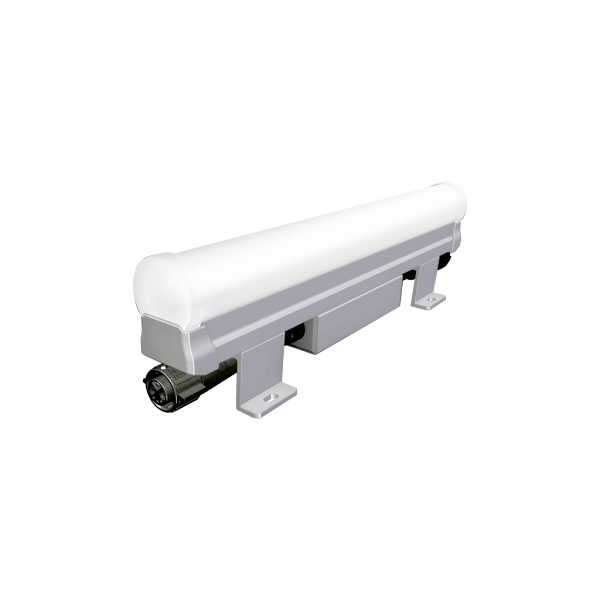

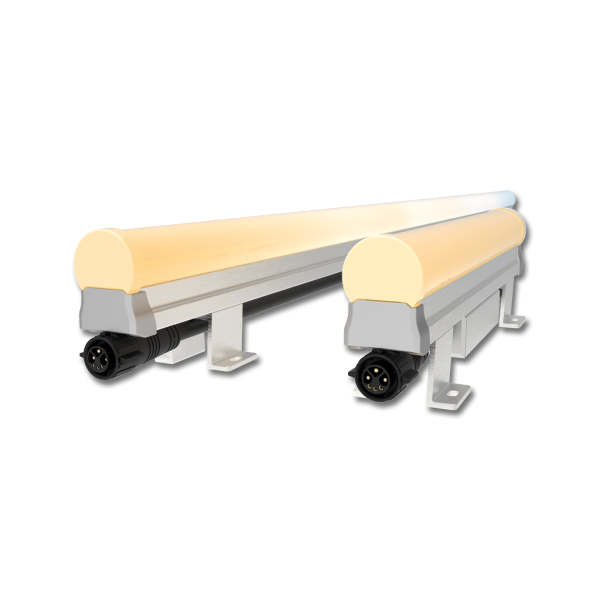

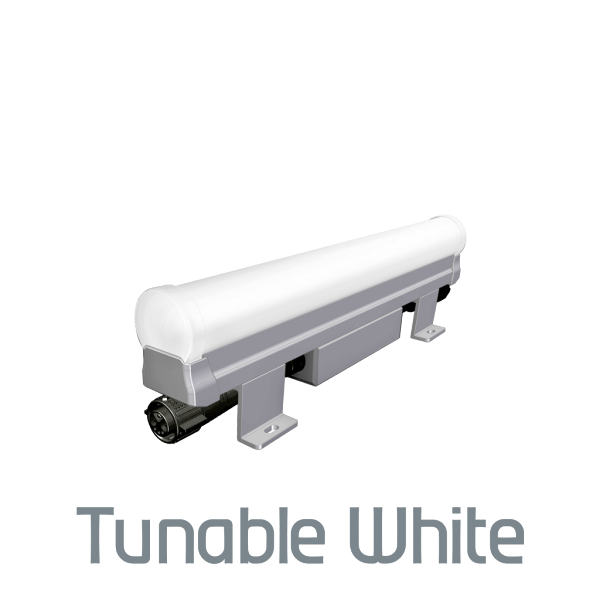

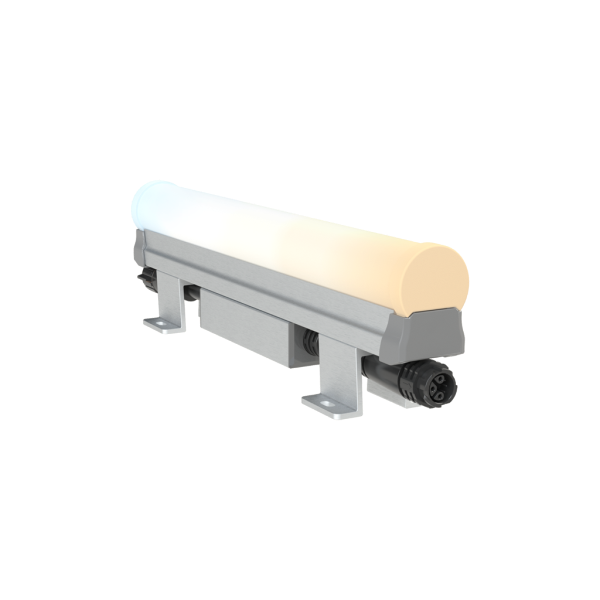

ColourLine Direct View TW (SSL-DV) is a dynamic direct view exterior luminaire, perfect for creating long ribbons of dynamic lighting. Twelve (12) inch resolution creates engaging visual effects in any architectural, retail, or entertainment setting. ColourLine Direct View Tunable White is available in 2200K – 6500K output, 1- and 4-foot lengths, and 12-inch resolution. All versions are IK10 impact resistant, UV stabilized polycarbonate lens, and IP66 dry, damp, and wet location rated. With a 120 - 277 VAC integral power supply and DMX / RDM protocols for control, luminaire power and data connectors are “push-lock” for simple installation.
ColourFULL – ColourFULL enhanced luminaires provide maximum output at all times at all color temperatures, so your application receives the maximum output and uniformity. ColourQuick (CQ) –provide the quickest color temperature mixing in the industry. The SSL ColourQuick technology enables our luminaires to mix instantaneously, at the luminaire lens ColourClone (CC) – A robotic manufacturing process that calibrates every luminaire to the exact same X, Y color coordinate and generates a bar code. It’s perfect for adding future luminaires, as well as matching a damaged one for replacement. ColourSoft (CS) – Unlike standard 8-bit resolution for 256 step dimming, our 32-bit on-board MCU uses 16-bit resolution to provide 65,536 steps of resolution, while only using 8 bits of addressing space. A logarithmic delineation concentrates the resolution to the lower third of the dimming curve so low-end dimming and color transitions have zero flicker
