CoveLine
Interior Luminaire

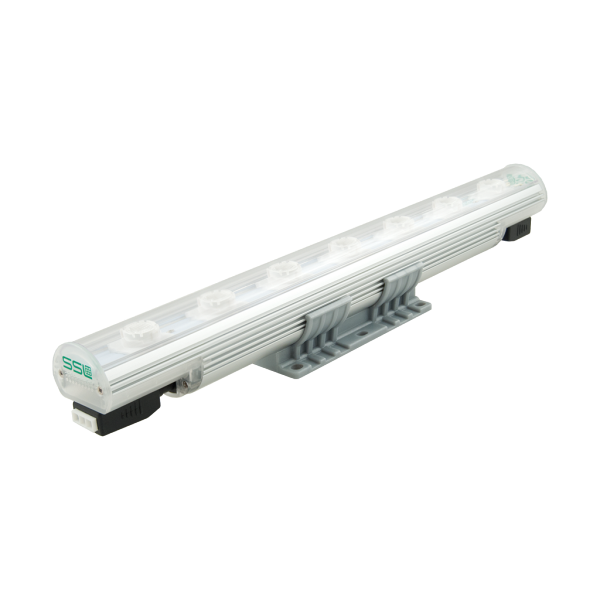

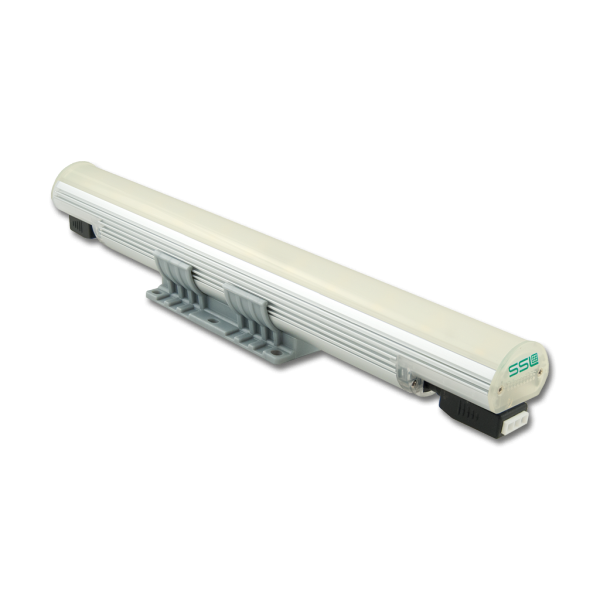

CoveLine (CVL) is a powerful and versatile cove luminaire with seven optical solutions. This luminaire is available in 1 ft and 4 ft nominal lengths and offers 2700K, 3000K, 3500K or 4000K color temperatures. The housing is constructed of extruded aluminum with tooled end caps and is IP20 rated for interior use only. Features line voltage “Plug N’ Play” connectors for easy installation. Using various sizes you can daisy chain together 60 linear feet in a single run, and even more when using higher voltages. The seven optic choices for CoveLine™ range from narrow 10°, 25°, 40° on up to 30° x 60° and 67° x 140° allowing for multiple application use. Narrow beam options are sometimes referred to as linear spot lighting and wider beam optics considered to be linear flood lighting. Use Module to Convert ELV to 0-10V Dimming. Converts ELV to 0-10V signal for 0-10V Dimming protocol. (DIM0-10VELV).

Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
CoveLine
CoveLine
CoveLine
CoveLineCoveLineCoveLine

FEATURES & BENEFITS


Performance
930 lm/ft
ft (10W
ft)

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off. Optional 0-10V to ELV Dimming Module.

Mounting Options
Surface Mount with (+/– 15°) adjustable brackets, (optional ADB2 Adj. Bracket +/– 90°)

Warranty
5-Year Limited Warranty
