CoveLine XL
Powerful and Versatile Cove Interior Luminaire

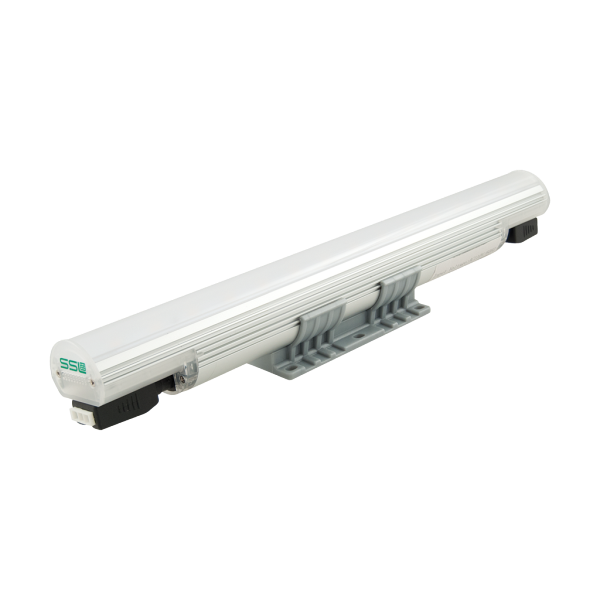

CoveLine XL (CVLX) is a powerful and versatile cove luminaire that can deliver 1200 lumens per foot. It comes in a 1 ft or 4 ft nominal lengths and 2700K, 3000K, 3500K or 4000K color temperatures. The housing is constructed of extruded aluminum with tooled end caps and is IP20 rated for interior use only. Features line voltage “Plug N’ Play” connectors for easy installation. CoveLine XL offers the highest delivered lumens of our indoor cove lighting LEDs. Also, at 1200 lumens per foot it has a low power consumption of only 11 watts per foot which equates to 109 lumens per watt. This linear cove lighting LED's efficiency comes from using highly reliable mid-power dies. These die are used in our SSL linear outdoor luminaires as well as our linear indoor. It has a standard deviation color matching of 2 SDCM. This offers better color consistency over the LEDs lifetime. It's ETL and cETL listed for use in the U.S. and Canada. Use Module to Convert ELV to 0-10V Dimming. Converts ELV to 0-10V signal for 0-10V Dimming protocol. (DIM0-10VELV).

Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
CoveLine XL
CoveLine XL
CoveLine XLCoveLine XL

FEATURES & BENEFITS


Performance
1200 lm/ft
109 lm/W

CCT
2400K
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off. Optional 0-10V to ELV Dimming Module.

Mounting Options
Surface Mount with (+/– 15°) adjustable brackets, (optional ADB2 Adj. Bracket +/– 90°)

Warranty
5-Year Limited Warranty
