CoveLine XL Color
Static Color Luminaire

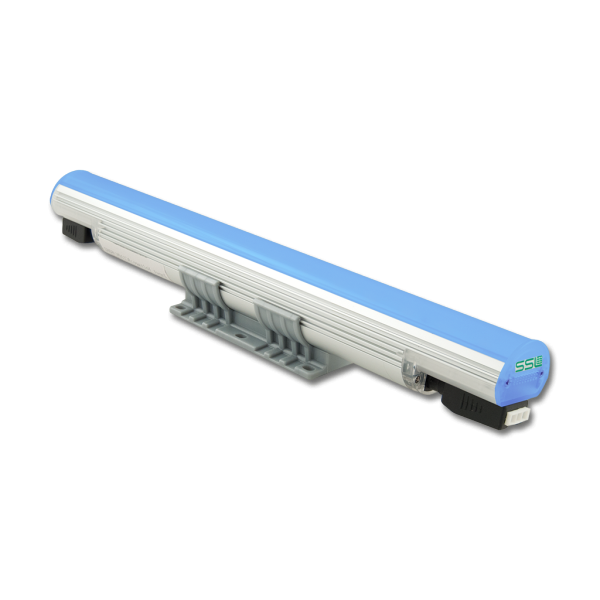

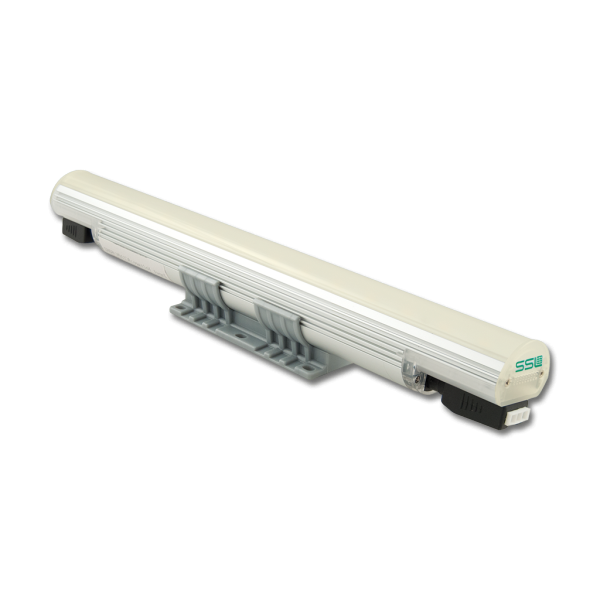

CoveLine XL Color (CVLX) is a low profile LED cove luminaire with 10 static color LED options, Pink, Violet, Light Blue, Spring Green, Yellow, Golden Yellow, Amber, Red, Green & Blue. It comes in 1 ft or 4 ft nominal lengths. The housing is constructed of extruded aluminum with tooled end caps and IP20 rated for interior use only. Features Plug N’ Play connectors and other accessories for easy installation. Flicker free dimming to 3% brightness ELV trailing edge. CVLX has a standard 120 degree optic for full linear light pattern illumination but also offers a 60 degree optic for a more focused linear light pattern. It's also a smart economical choice for adding color at 11W per foot with CVLX Color having the highest output for the value in our static color fixture series. Our static colored LEDs are great for backdrop settings, adding even linear light edges to architecture and creating ambiance for the viewer. Use Module to Convert ELV to 0-10V Dimming. Converts ELV to 0-10V signal for 0-10V Dimming protocol. (DIM0-10VELV).
Spec Sheet
Spec Sheet Downloads
IES
Install Instructions
Install Instructions Downloads
CoveLine XL Color
CoveLine XL Color
CoveLine XL Color
CoveLine XL ColorCoveLine XL ColorCoveLine XL Color

FEATURES & BENEFITS


Performance
11W/ft

CCT
10 Static Colors

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off

Mounting Options
Surface Mount with (+/– 15°) adjustable brackets, (optional +/– 80°)

Warranty
5-Year Limited Warranty

Optic Beam Options
60°
120°
