CoveLine XL WET
Power & Versatile Exterior Luminaire

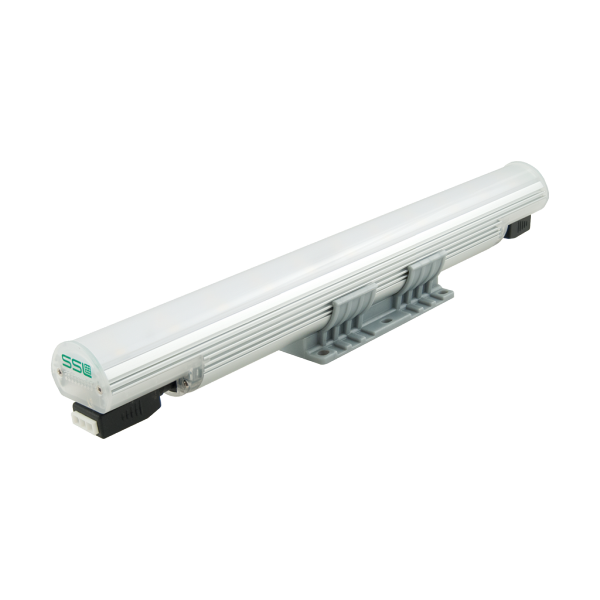

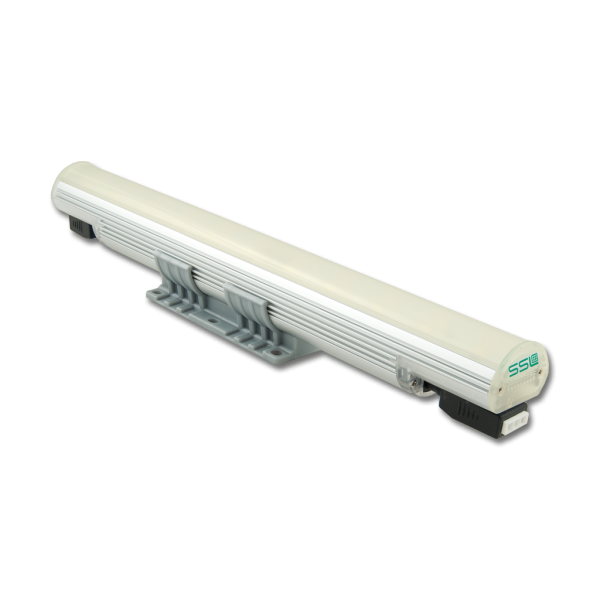

CoveLine XL WET (CVLXWET) is a powerful and versatile interior / exterior cove luminaire. CoveLine XL WET comes in a 1 ft, 4 ft or 6 ft nominal lengths and 2700K, 3000K, 3500K or 4000K color temperatures. The housing is constructed of extruded aluminum with tooled end caps and IP66 rated for interior & exterior use. Features IP68 line voltage Plug N’ Play connectors for easy installation. Power supply is integral, no remote driver required. Universal orientation luminaire; up, down, horizontal or vertical positioning and 2 optical solutions. Flicker free dimming to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
CoveLine XL WET

FEATURES & BENEFITS


Performance
1248 lm/ft

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off.

Mounting Options
Universal orientation surface mounting with (+/– 15°) adjustable brackets, (ADB option +/– 80°).

Warranty
5-Year Limited Warranty

Optic Beam Options
120°
30° x 80°
