eCoveLine XL Color
Economical Static Color Interior Lighting

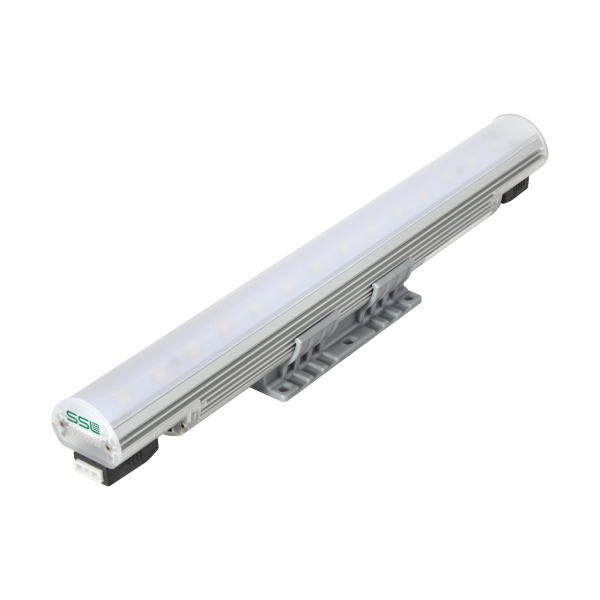

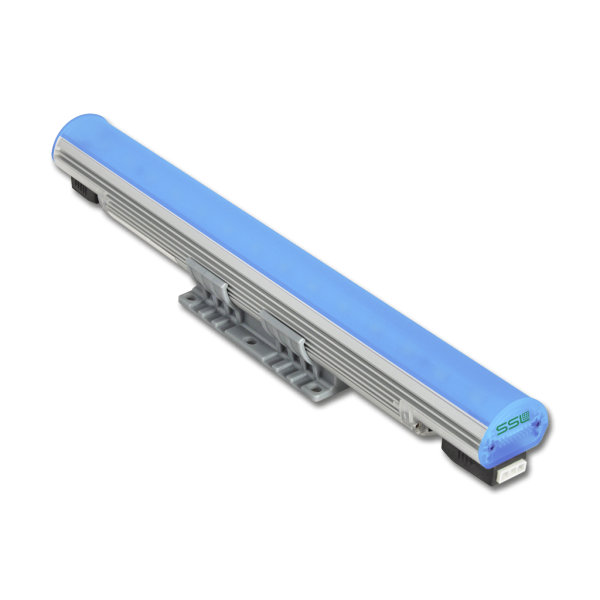

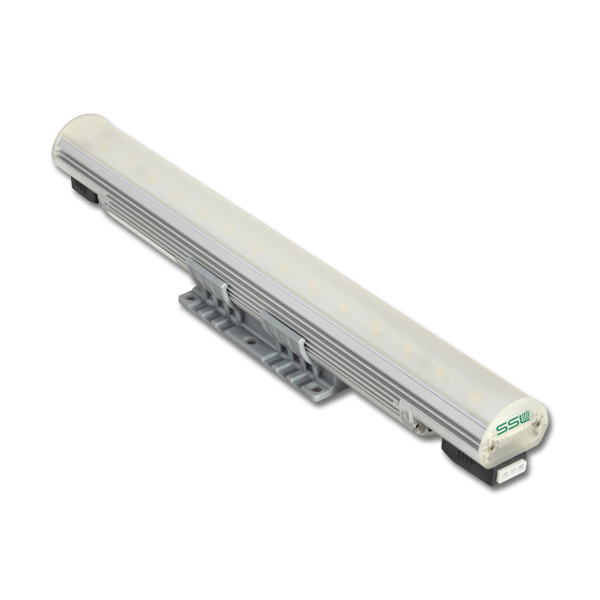

The eCoveLine XL Color (ECVLX) is a low profile LED cove luminaire with 10 static color LED options, Pink, Violet, Light Blue, Spring Green, Yellow, Golden Yellow, Amber, Red, Green & Blue. It comes in 1 ft, or 4 ft nominal lengths. The housing is constructed of extruded aluminum with tooled end caps and IP20 rated for interior use only. This fixture features Plug N’ Play connectors and other accessories for easy installation. Flicker free dimming to 3% brightness ELV trailing edge. Our static colored LEDs are great for a backdrop setting, adding even linear light edges to architecture and creating and ambiance for the viewer. Use Module to Convert ELV to 0-10V Dimming. Converts ELV to 0-10V signal for 0-10V Dimming protocol. (DIM0-10VELV).
Spec Sheet
Spec Sheet Downloads
IES
Install Instructions
Install Instructions Downloads
eCoveLine XL Color
eCoveLine XL Color
eCoveLine XL Color
eCoveLine XL Color
eCoveLine XL Color
eCoveLine XL ColoreCoveLine XL ColoreCoveLine XL ColoreCoveLine XL ColoreCoveLine XL Color

FEATURES & BENEFITS


Performance
6.1 W/ft

CCT
10 Static Colors

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off

Mounting Options
MOUNTING OPTIONS Surface Mount with (+/– 15°) adjustable brackets, (optional +/– 80°)

Warranty
5-Year Limited Warranty

Optic Beam Options
120°
60°
