MicroLine STEP
Fully Surface Integrated Step Lighting System

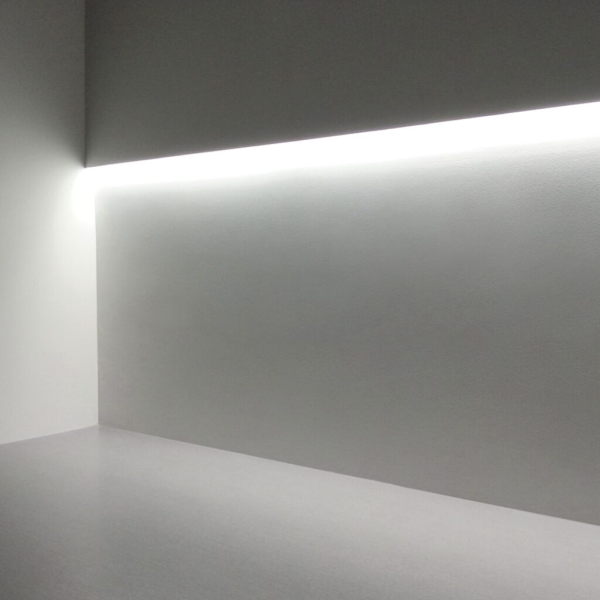

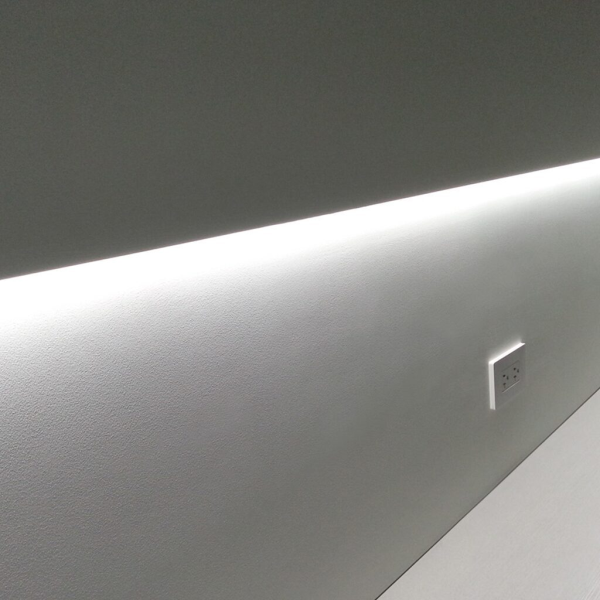

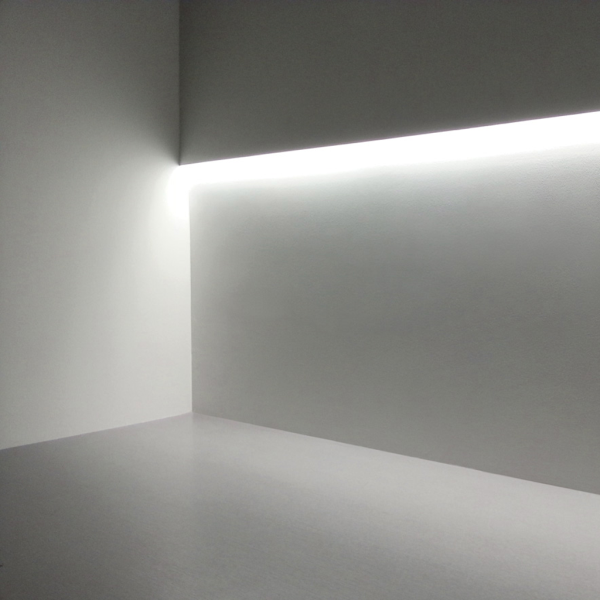

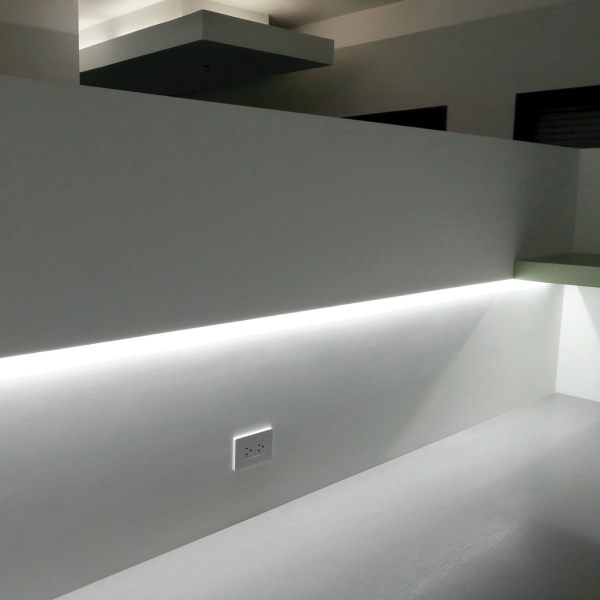

The MicroLine STEP (MLS) is a fully integrated architectural LED lighting system for interior design applications. The MicroLine STEP is a modular construction system for creating seamless lighting effects. It’s perfect for architectural design accents, minimalist cove style applications and also for areas that need light but have limited space. Available in 2700K, 3000K and 4000K color temperatures. Low energy consumption.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
MicroLine STEP
MicroLine STEP
MicroLine STEP
MicroLine STEPMicroLine STEPMicroLine STEP

FEATURES & BENEFITS


Performance
189 lm/ft
42 lm/W
4.5 W/ft

CCT
2700K
3000K
4000K

Power Input
24 VDC

Control
Class 2, 98W max, UL listed

Mounting Options

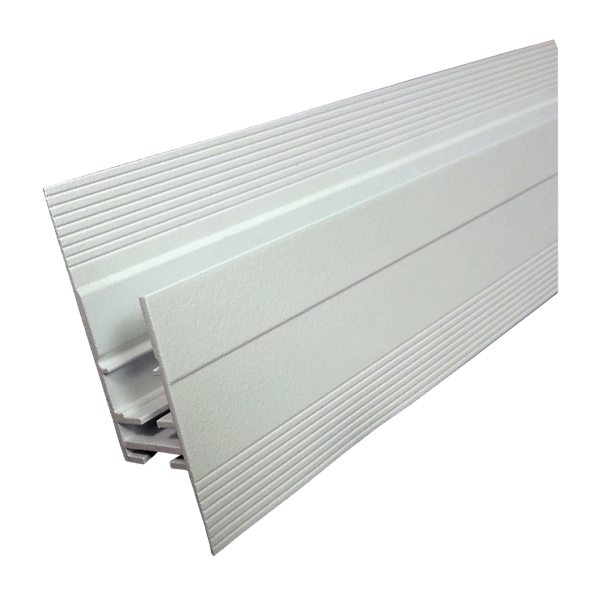

Extruded Aluminum, integrated into wall surface.

Warranty
5-Year Limited Warranty
