UnderLine XL
Ultra Low Profile Plug N’ Play System

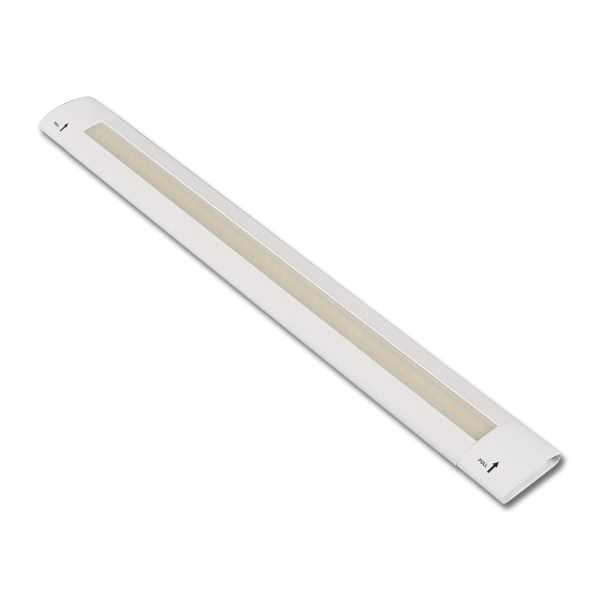

The

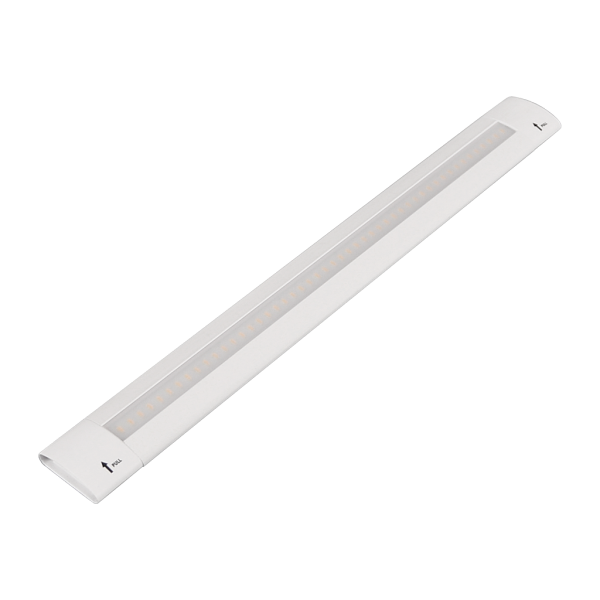

UnderLine XL (UNLXL)

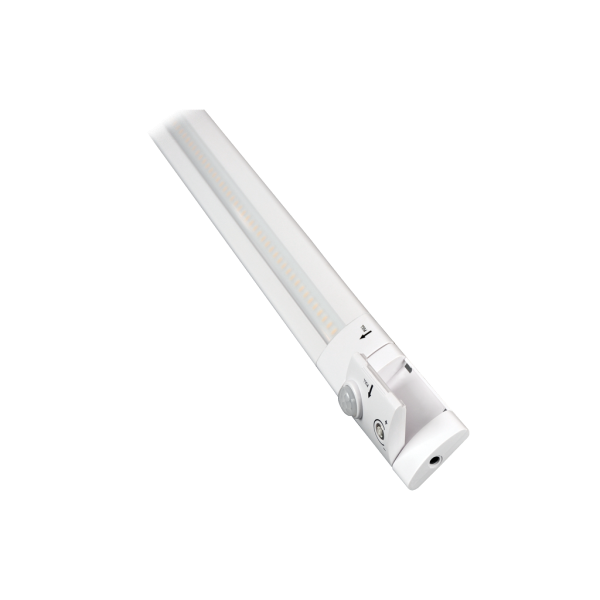

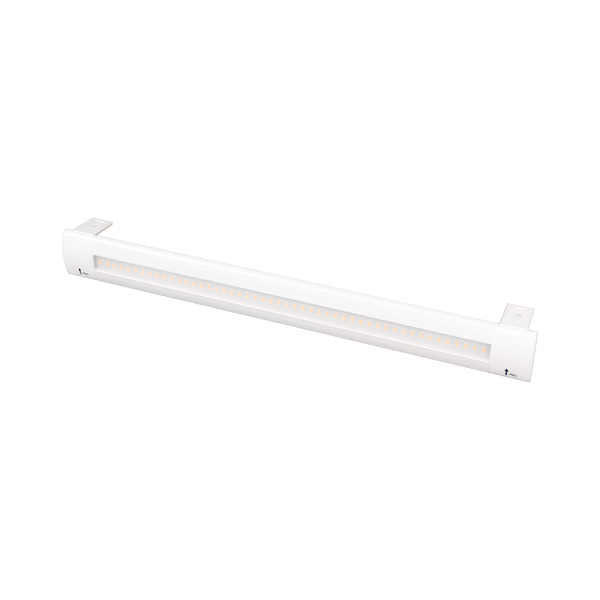

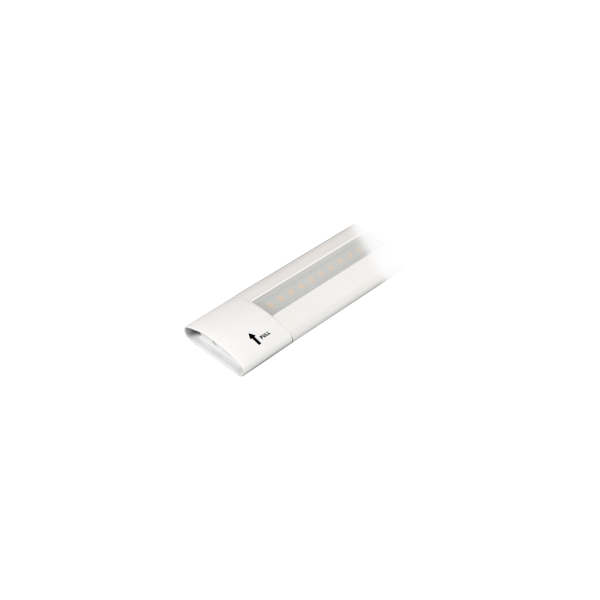

is a next generation ultra-low profile under-cabinet luminaire. It has additional accessories for mounting and wiring configuration. Along with, adjustable sensor and dimming controls. UnderLine XL delivers up to 650 lumens per foot at 4000K. Furthermore, the integrated, adjustable mounting system makes for easy installation. All of the advanced features and accessory options make UnderLine XL one of the most adaptable under-cabinet LEDs on the market. Flush integrated mounting arms are sturdy aluminum to provide a rigid mount, that also allows up to 90 degrees of rotation. It comes in 12, 20, and 39 inch lengths. The extruded anodized aluminum housing comes in standard white finish. Another feature is the Plug N’ Play connectors for easy installation.
Spec Sheet
Spec Sheet Downloads
UNLXL.pdf
IES
IES Downloads
UNLXL_IES_Data.zip
Install Instructions
Install Instructions Downloads
UNLXLii.pdf
FEATURES & BENEFITS
Performance
650 lm/ft
108 lm/W
6 W/ft
CCT
3000K
4000K
Power Input
24 VDC
UL Class II Power
Control
0-10V Dimming
Mounting Options
Clips to surface mounted hanger brackets
Warranty
3-Year Limited Warranty
Optic Beam Options
180°
