BASELINEXG2 AC
Exterior Low Profile Grazer & Flood LED

BASELINEXG2 AC - Exterior Flood Light

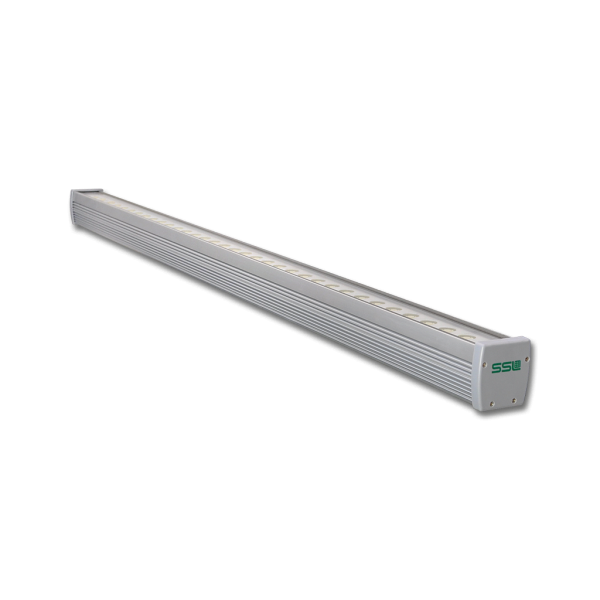

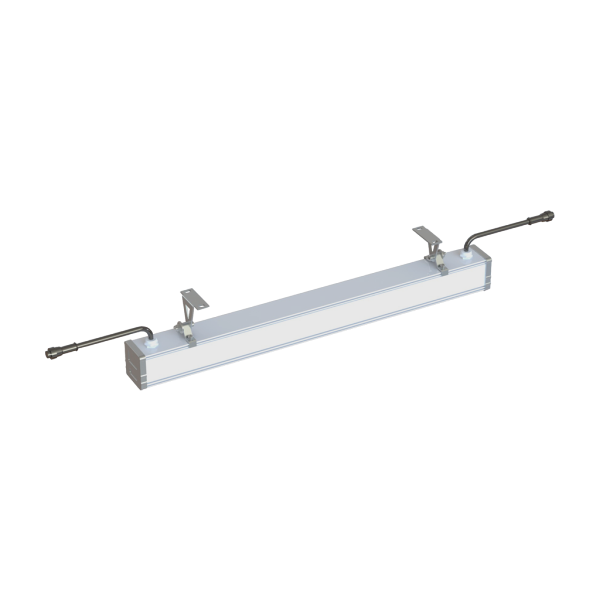

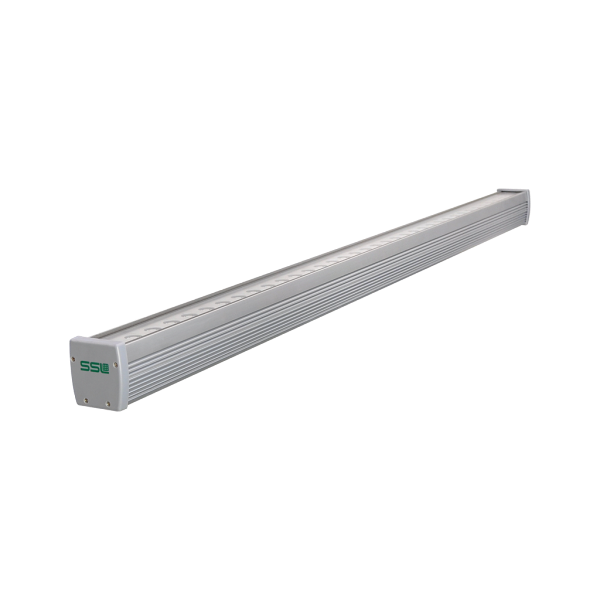

BASELINEXG2 AC is a low profile linear LED floodlight with multiple distributions. It's available in 1', 2', 3' and 4' nominal lengths and 2700K, 3000K, 3500K or 4000K color temperatures. The LEDs have a Color Rendering Index of CRI 84 and a 2 SDCM. BaseLineXG2 AC (BLXG2AC), has an extruded anodized aluminum body, with die cast end caps sealed for an IP66 rating. The luminaire features two IP68 plug-n-play connectors at each end for daisy chain installation, one is for line-voltage and the other is for data control with 0–10V dimming. This makes it easy to complete up to 60 feet long linear runs. This is a high powered LED enhanced by optical performance that can deliver up to 1365 lumens per foot, effectively using only 15W per foot.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
BASELINEXG2 AC
BASELINEXG2 AC
BASELINEXG2 AC
BASELINEXG2 AC
BASELINEXG2 AC
BASELINEXG2 AC
BASELINEXG2 AC
BASELINEXG2 ACBASELINEXG2 ACBASELINEXG2 ACBASELINEXG2 ACBASELINEXG2 ACBASELINEXG2 ACBASELINEXG2 AC

FEATURES & BENEFITS


Performance
1365 lm
ft (15W
ft)

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC

Control
0-10V Dimming

Mounting Options
Standard, Cantilever, Cable, and Pendant Mounting.

Warranty
5-Year Limited Warranty

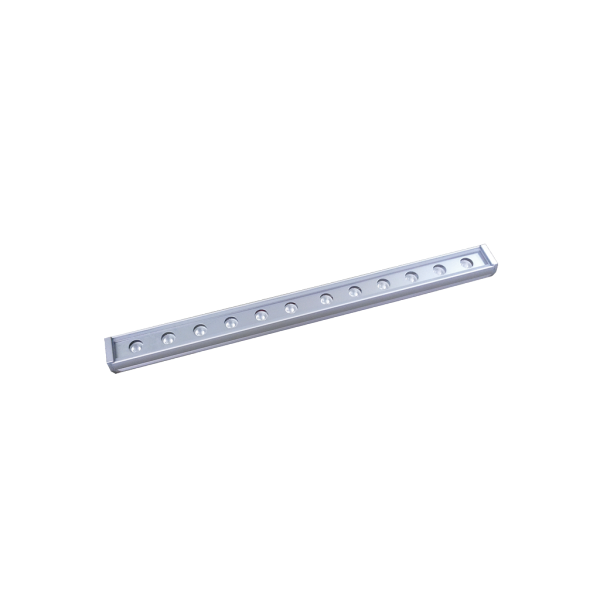

Optic Beam Options
10°
25°
40°
120°
10°x40°
21ºx56º
30°x60°
