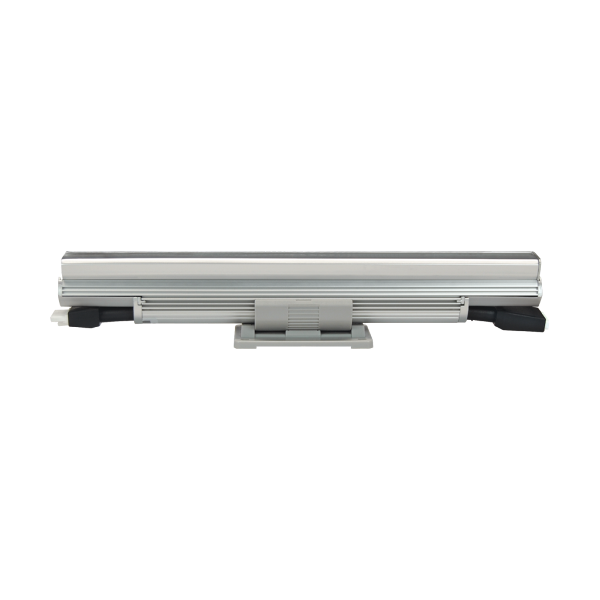

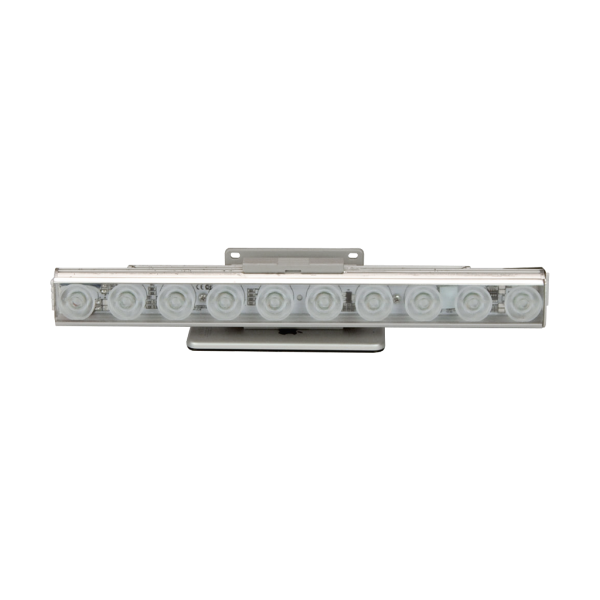

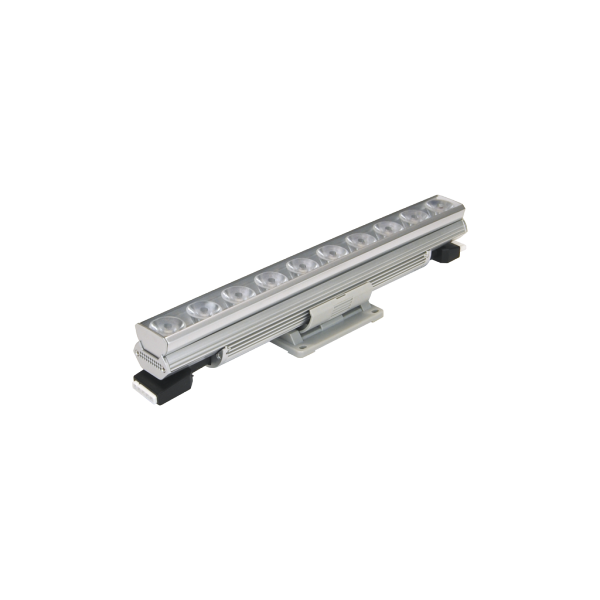

ColourLine™ Graze RGBW

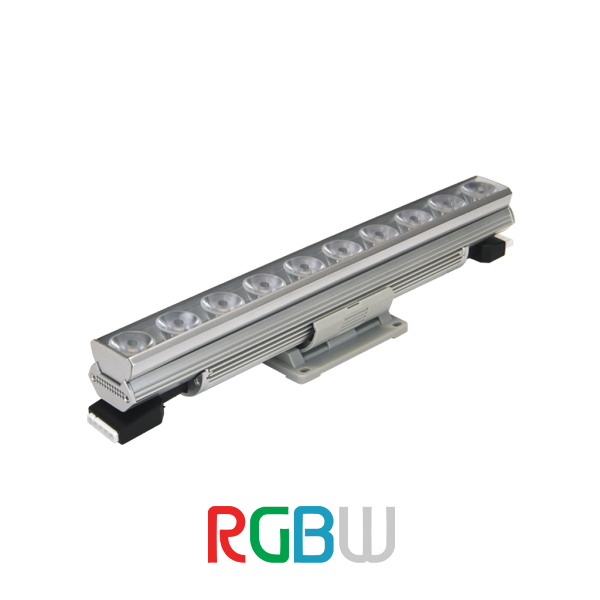

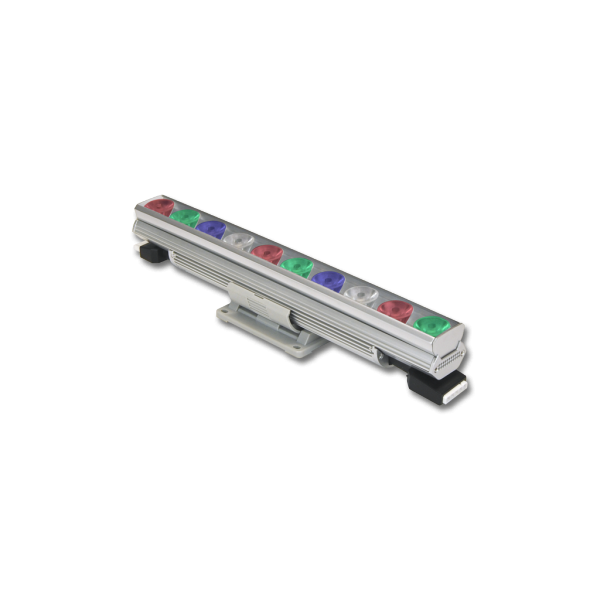

ColourLine Graze RGBW (CLGR) is a high output, interior luminaire addition to the Solid State Luminaires ColourLine product category. The CLGR offers multiple optics for precise lighting of wall grazing and wall washing applications. With dynamic, color changing effects that provide RGBW illumination for interior cove applications requiring consistent, even lighting, CLGR is a specifier's complete solution. The ColourLine RGBW family uses SSL developed firmware that is tested to the most current industry standard version of RDM. This technology allows our fixtures to interoperate with leading controllers and presents ease of configuration. colourLine RGBW 4 Unique Features in One
Observe the four unique advancements in technology utilized by our ColourLine Luminaires.
ColourQuick (CQ) - ColourLine RGBW luminaires provide the quickest color mixing in the industry. The SSL ColourQuick technology enables our ColourLine Interior Cove and Grazer to mix instantaneously, within one inch.  ColourClone (CC) - As part of our manufacturing process, SSL Automated Manufacturing Robots calibrate every luminaire to the exact same X,Y color coordinates to provide Step-1 like consistency. This process enables every luminaire to be an exact clone. At the end of the process, a bar code is generated for every board. This allows for exact matching for job add-ons or warranty replacements.  ColourSoft (CS) - Standard dimming technology uses 8-bit resolution for 256 individual steps. Our 32-bit on-board MCU uses SSL developed software to provide 16-bit resolution that allows 65,536 steps of resolution and only use 8-bits of addressing space! We also use a logarithmic delineation of the resolution to concentrate in the lower third of the dimming curve so the low-end dimming and color transitions have zero flicker.  ColourMode (CM) - SSL uses Digital Dual Mode (DDM) technology to provide RGBW and Tunable White in one luminaire! SSL firmware is designed to use 6 DMX channels in the DDM Personality Mode. Maximum Mood Enhancement is available to use for any type of environment. Channels 1-4 are reserved for RGBW. Channels 5-6 are used for White color tuning. Channel 5 controls intensity, channel 6 controls White color.
Spec Sheet
Spec Sheet Downloads
IES
Install Instructions
Install Instructions Downloads
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine Graze
ColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine GrazeColourLine Graze

FEATURES & BENEFITS


Performance
525 lm
ft-14W
ft
350 lm
ft-9W
185 lm
ft-5W

CCT

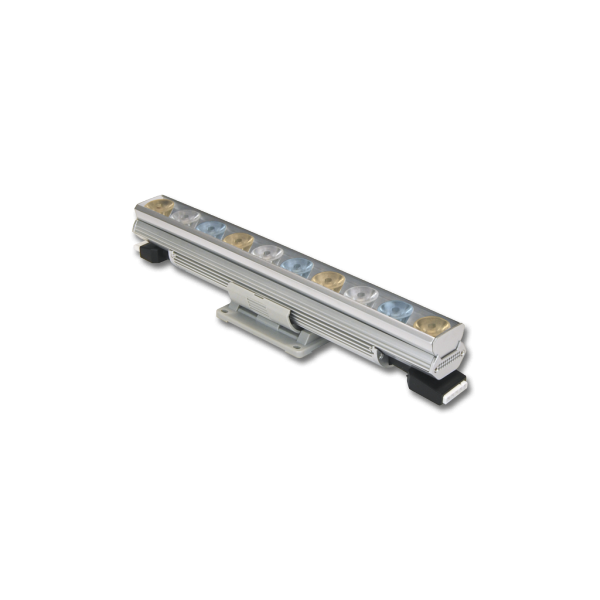

RGBW + Tunable White in One

Power Input
UNV 120 - 277 VAC

Control
RGBW Controllers - 512 DMX, ESTA RDM and ACN standards

Mounting Options
Standard 180° adjustable bracket

Warranty
5-Year Limited Warranty

Optic Beam Options
12°x12°
15°x30°
20°x10°
20°x40°
25°x25°
30°x60°
40°x15°
40°x40°
