CoveLine WET 1.5
Power, Versatile Exterior Luminaire

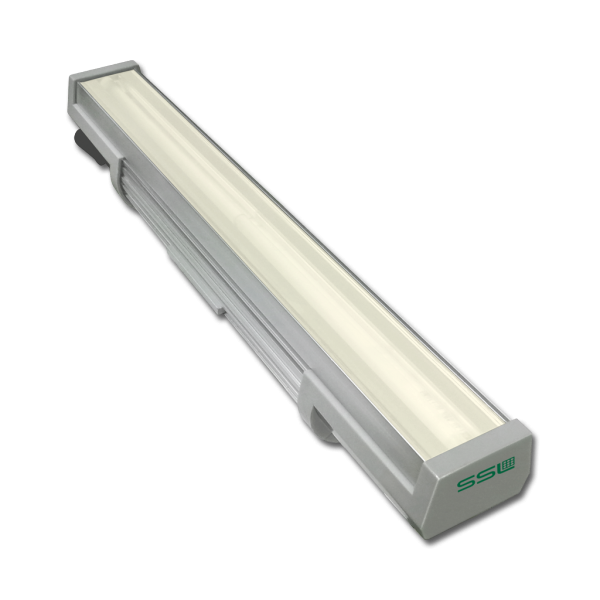

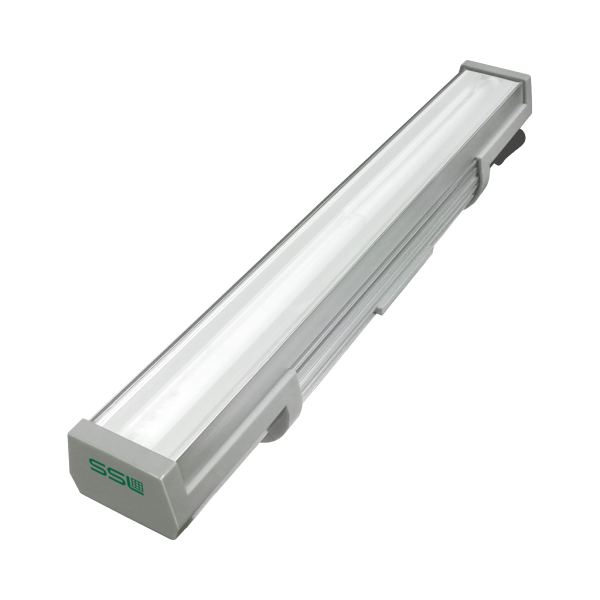

CoveLine WET 1.5 (CVLWET-1.5) is a powerful and versatile interior / exterior cove luminaire. The CoveLine WET 1.5 comes in a 1 ft, 4 ft or 6 ft nominal lengths and 27K, 3K, 35K, 4K or 5K color temperatures, as well as static color choices. The housing is constructed of extruded aluminum with tooled end caps and is IP66 rated for interior & exterior use. Features IP68 line voltage Plug N’ Play connectors for easy installation. Power supply is integral, no remote driver required. Universal orientation luminaire; up, down, horizontal or vertical positioning and 9 optical solutions. Flicker free dimmable to 5% full brightness ELV trailing edge dimming.

Spec Sheet
Spec Sheet Downloads
IES
Install Instructions
Install Instructions Downloads
CoveLine WET 1.5
CoveLine WET 1.5
CoveLine WET 1.5
CoveLine WET 1.5CoveLine WET 1.5CoveLine WET 1.5

FEATURES & BENEFITS


Performance
1000 lm/ft (11.5 W/ft)
111 lm/w

CCT
2700K
3000K
3500K
4000K
5000K

Power Input
UNV 120 - 277 VAC

Control
ELV (reverse phase/trailing edge) = 5%

Mounting Options

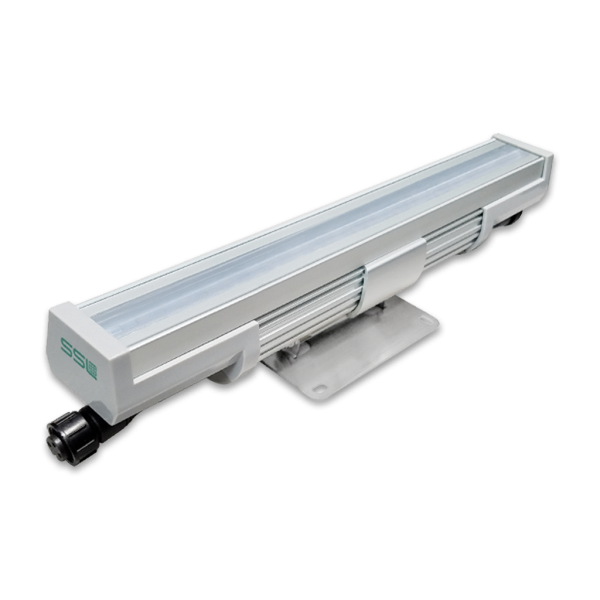

Standard: surface mount bracket with (+/- 45°) and optional: ADBW2-90 full 180° rotation ( +/- 90°)

Warranty
5-Year Limited Warranty

Optic Beam Options
10°
25°
40°
80°
120°
10°x40°
21ºx56º
30°x60°
67°x140°
