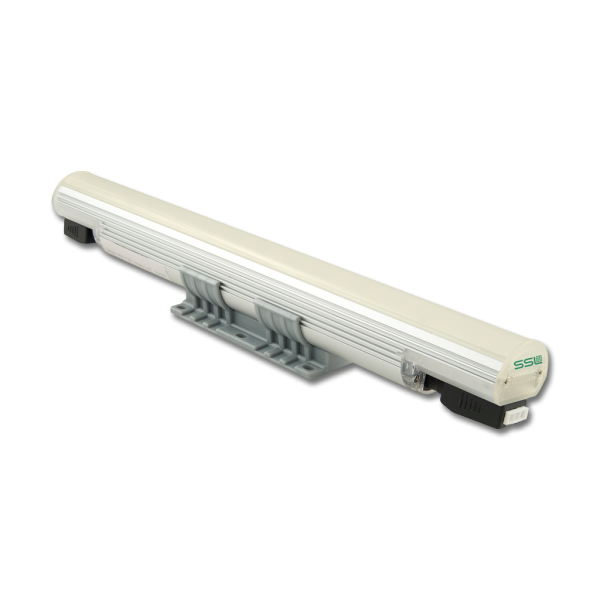

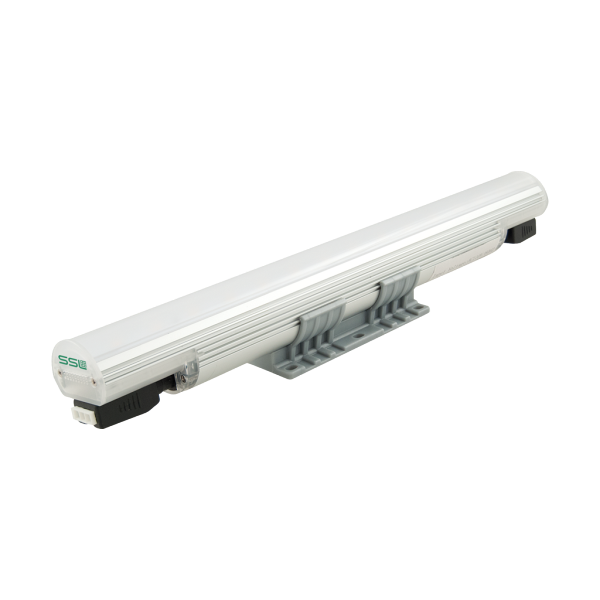

eCoveLine WD-E
Dim to Warm Interior Luminaire
eCoveLine WD-E (ECVLWD-E) is an economical low-profile cove luminaire with Dim to Warm capabilities from 3500K to 2200K. This provides a smooth dim-to-warm effect for lighting applications requiring warm lighting. The eCoveLineWD-E is versatile with two optical solutions and comes in a 1 ft or 4 ft nominal length. It's constructed with extruded aluminum housing, tooled end caps, and IP43 rated for interior dry or damp use only. eCoveLine WD-E has a unique dimming feature that allows a standard ELV reverse phase dimmer to change the LED color temperature to a warmer CCT as the luminaire is dimmed. Color ranges from 3500K down to 2200K. Line voltage Plug-N-Play connectors make for easy installation. Use Module to Convert ELV to 0-10V Dimming. Converts ELV to 0-10V signal for 0-10V Dimming protocol. (DIM0-10VELV).
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
eCoveLine WD-E
eCoveLine WD-E
eCoveLine WD-EeCoveLine WD-E

FEATURES & BENEFITS


Performance
600 lm/ft
109 lm/W

CCT
2200–3500K

Power Input
120 VAC Only

Control
LED dimmable to warm from 3500K to 2200K

Mounting Options
standard surface mount bracket adj. (+/– 15°), ADBW2 optional bracket adjustable (+/– 90°)

Warranty
5-Year Limited Warranty

Optic Beam Options
60°
120°
