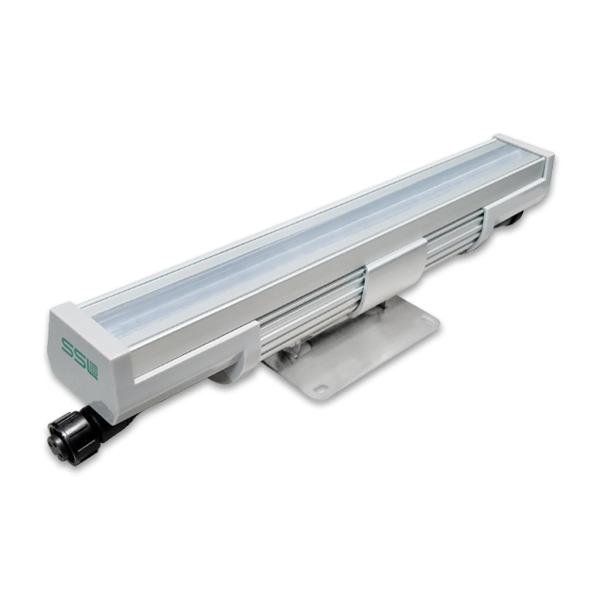

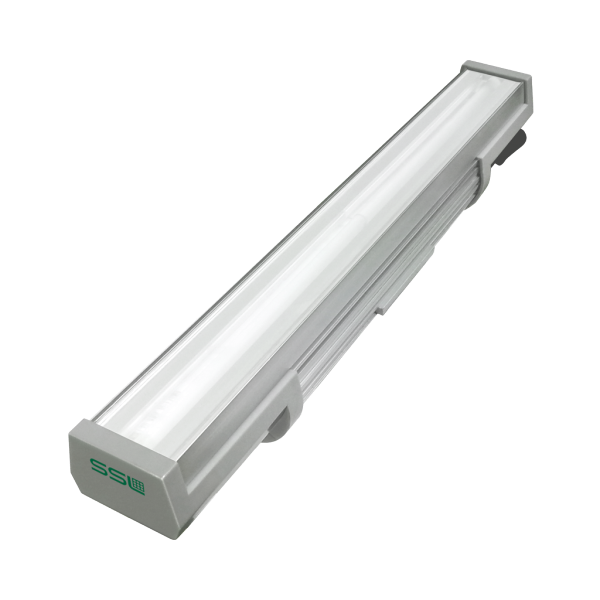

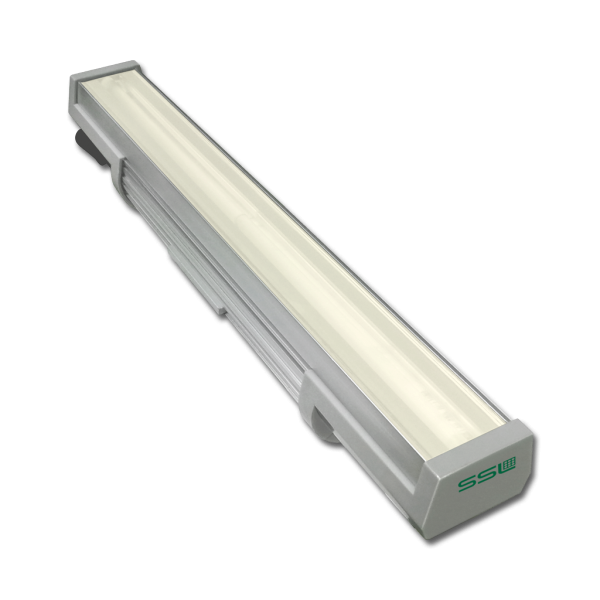

eCoveLine XL WET 1.5
Powerful Exterior Luminaire

eCoveLine XL WET 1.5 (ECVLXWET-1.5) luminaire is highly suitable for both indoor and outdoor applications. Available in lengths of 1, 4, or 6-foot, and color temperatures of 2700K, 3000K, 3500K, 4000K, 5000K, Amber, Blue, Light Blue, or Red, with either 30° x 80° or 120° beam angles.With a durable extruded aluminum body and precision-tooled end caps, this luminaire boasts an IP66 rating, plug-and-play connectors, and flicker-free dimming down to 5% of full brightness using ELV trailing edge dimming technology. The eCoveLine XL WET 1.5 features a universal orientation mounting design, allowing for flexible positioning — upwards, downwards, horizontally, or vertically. Compliant with Chicago Code regulations, the eCoveLine XL WET 1.5 is a versatile linear luminaire designed to meet your specific needs.

Spec Sheet
Spec Sheet Downloads
IES
Install Instructions
Install Instructions Downloads
eCoveLine XL WET 1.5
eCoveLine XL WET 1.5
eCoveLine XL WET 1.5
eCoveLine XL WET 1.5eCoveLine XL WET 1.5eCoveLine XL WET 1.5

FEATURES & BENEFITS


Performance
676 lm/ft
5.9 W/ft @ 120V
114 lm/w

CCT
2700K
3000K
3500K
4000K
5000K

Power Input
UNV 120 - 277 VAC

Control
ELV (reverse phase/trailing edge) = 5%

Mounting Options
standard: surface mount bracket with (+/- 45°) and optional: ADBW2-90 full 180° rotation ( +/- 90°)S

Warranty
5-Year Limited Warranty

Optic Beam Options
120°
30°x 80°
