SSC6GA

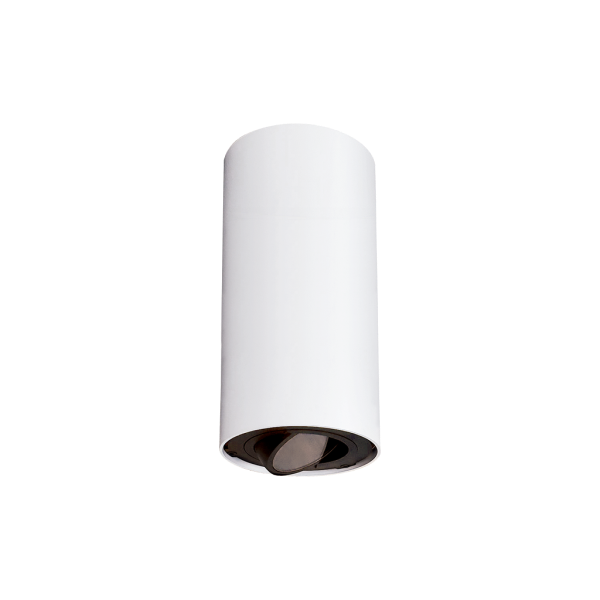

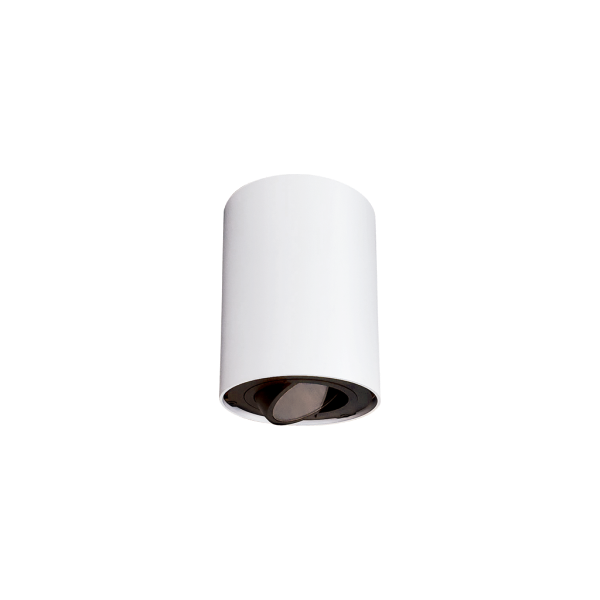

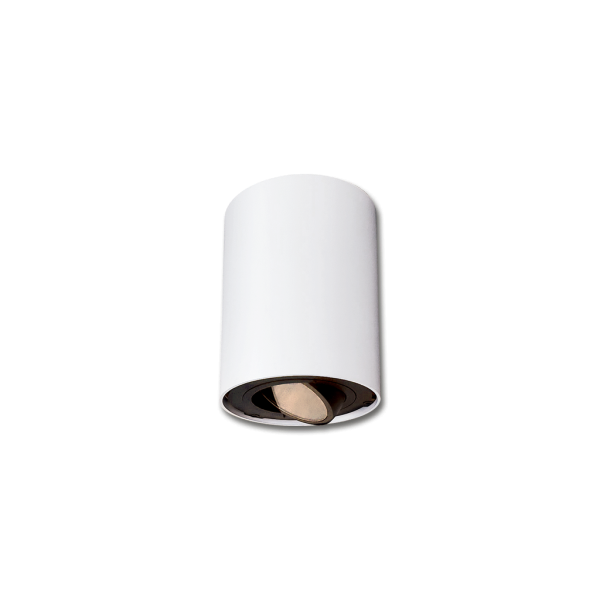

6" Adjustable Gimbal Ring Cylinder

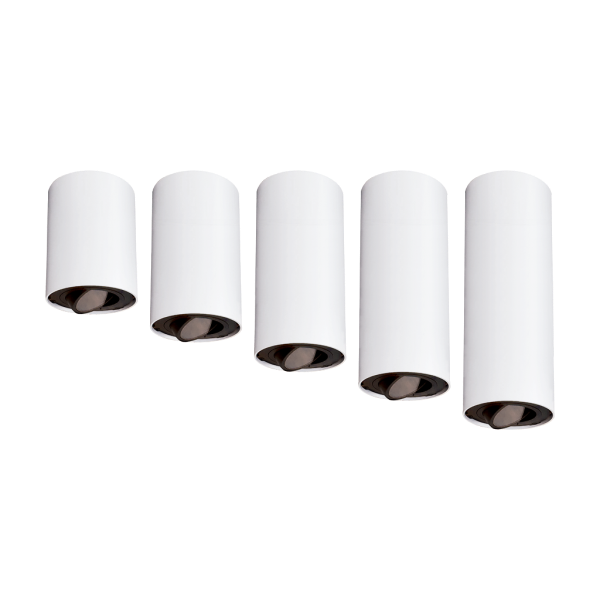

SSC6GA Series Gimbal Down Cylinders

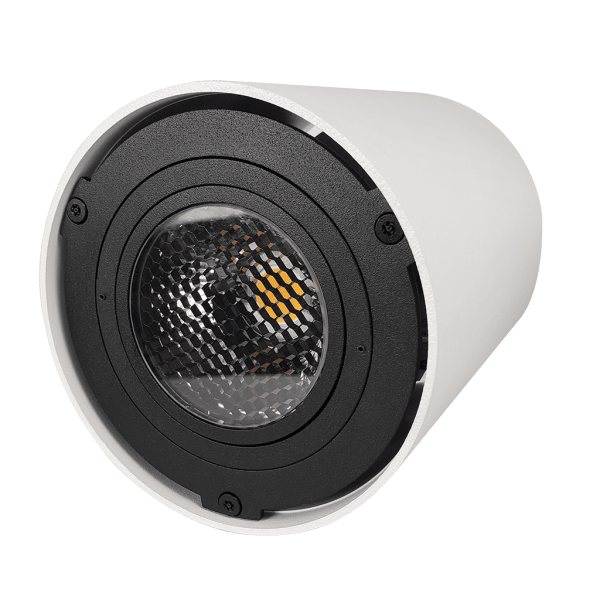

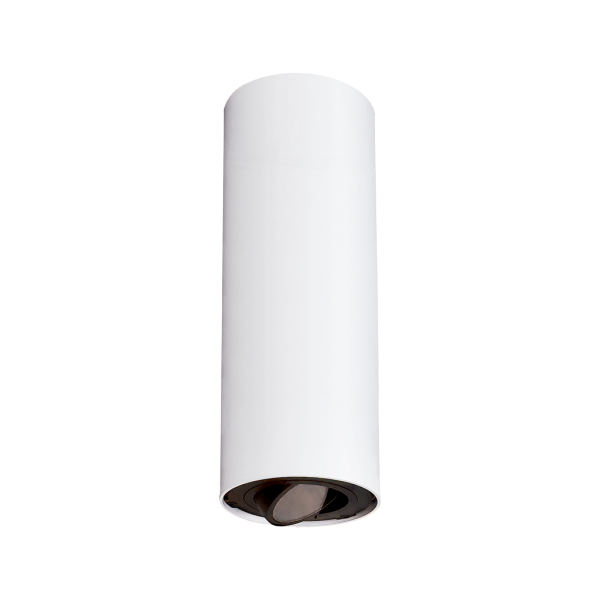

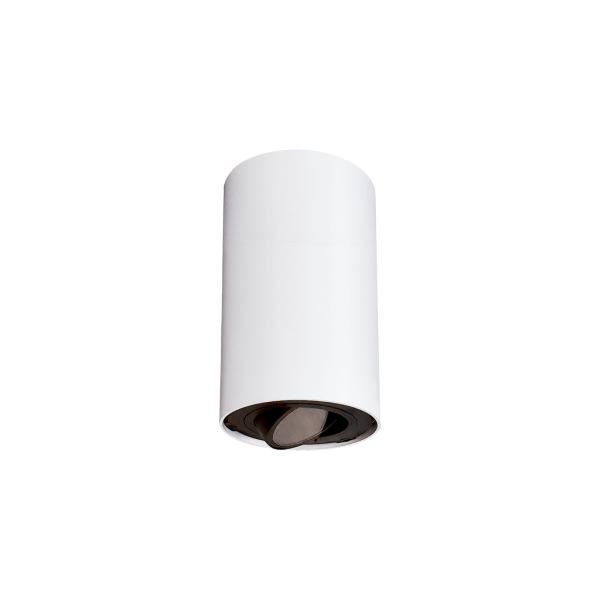

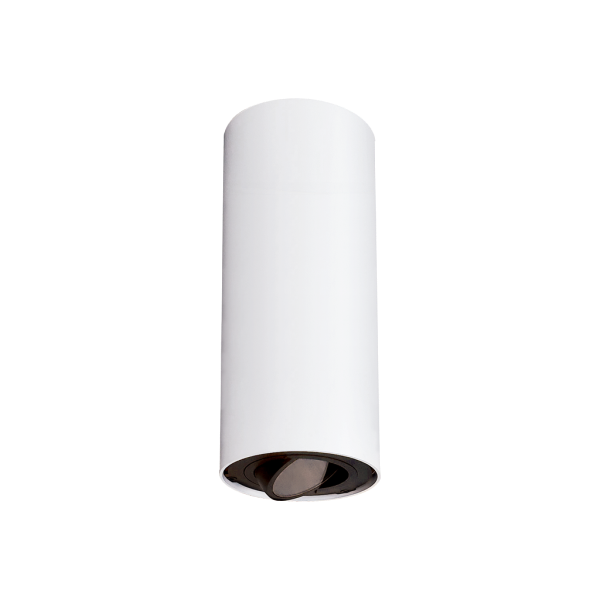

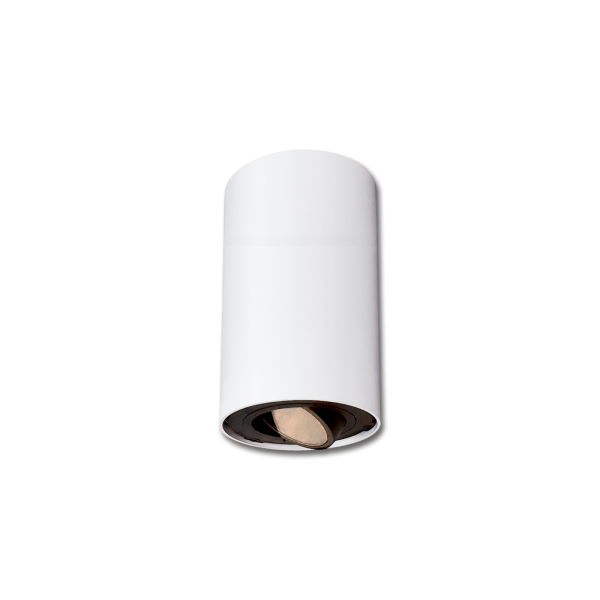

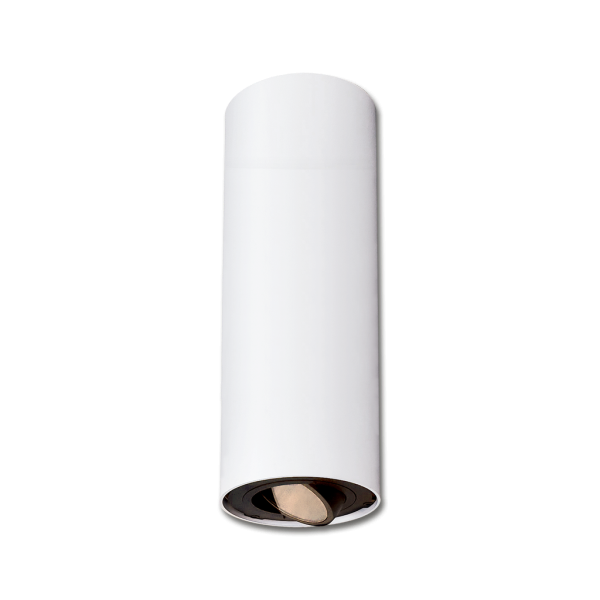

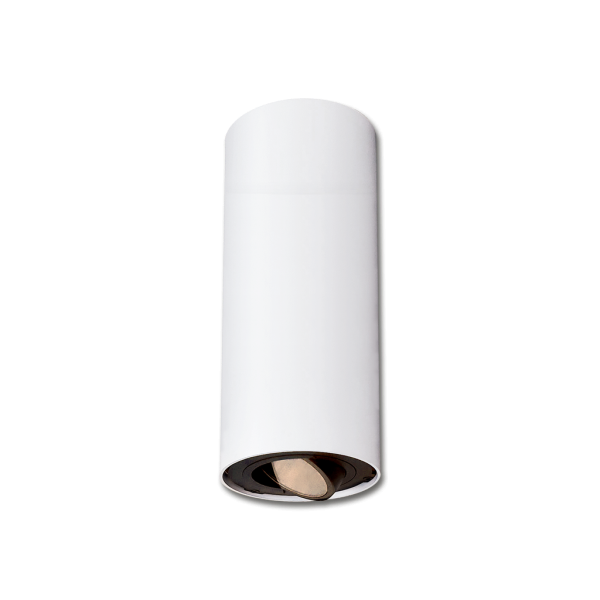

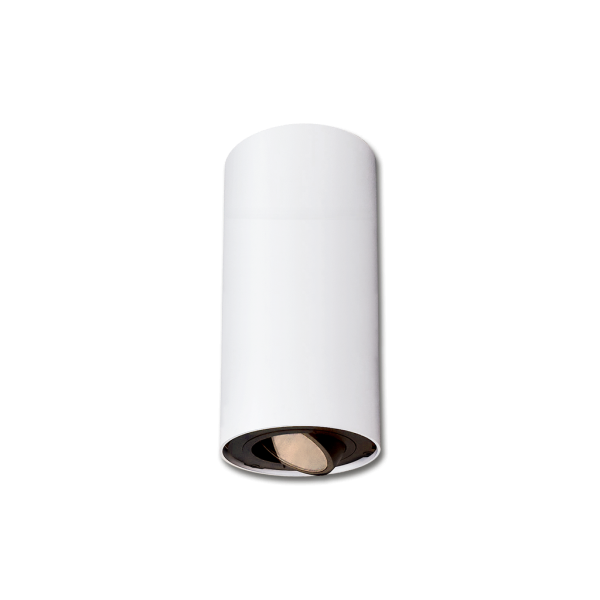

SSC6GA is a 6-inch round interior cylinder with an adjustable gimbal ring to set lighting direction. It has surface, wall, and pendant mounting options for different application installations. The standard driver Tri-Dim includes 0-10V (dims to 1%), TRIAC and ELV. SSC6GA is marine grade, corrosion resistant, solid aluminum extrusion, die-cast aluminum components. The adjustable Gimbal ring assembly can be rotated 359° and tilted (+/–) 32°, using an .050" hex driver to loosen set screws on the face, to set the light beam direction. It has an IK05 impact compliant, clear anti-glare tempered glass lens. Continuous silicone gasket to seal out contaminants, rated for dry or damp locations.
Spec Sheet
Spec Sheet Downloads
Install Instructions
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GA
SSC6GASSC6GASSC6GASSC6GASSC6GASSC6GASSC6GASSC6GASSC6GASSC6GASSC6GASSC6GA

FEATURES & BENEFITS


Performance
3500 lm (34W)
3000 lm (27W)
2500 lm (23W)
2000 lm (18W)

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 VAC-277 VAC
347 VAC

Control
Tri-Dim includes 0-10V, 1%, TRIAC and ELV

Mounting Options
Surface, Wall or Slope Pendant

Mounting Type
Surface
Wall or Slope Pendant

Warranty
5-Year Limited Warranty

Optic Beam Options
15°
25°
60°
