SSC8GA
8" Adjustable Gimbal Ring Cylinders

SSC8GA Series Gimbal Down Cylinders

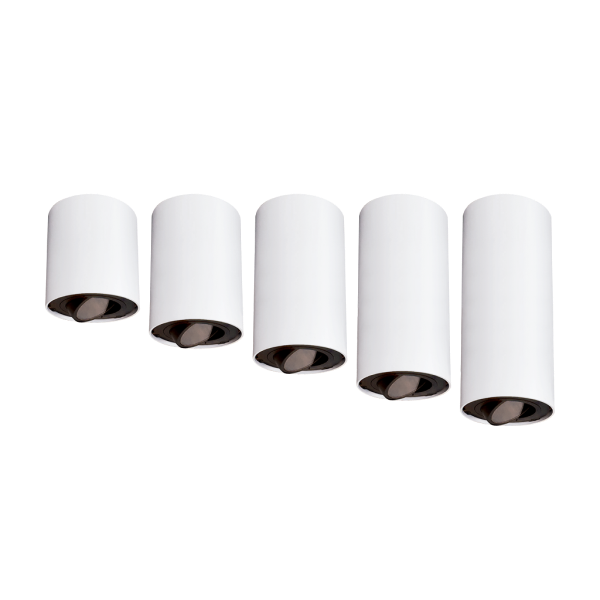

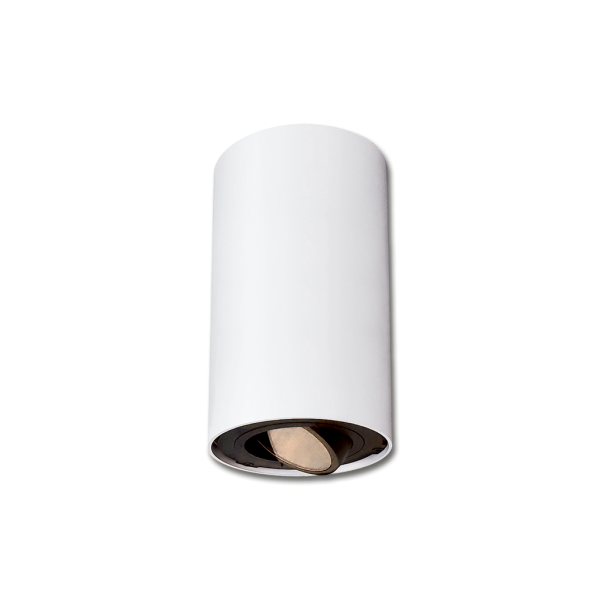

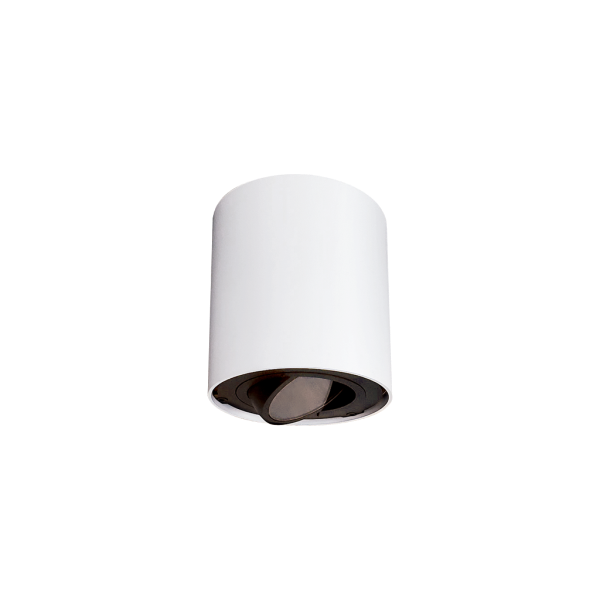

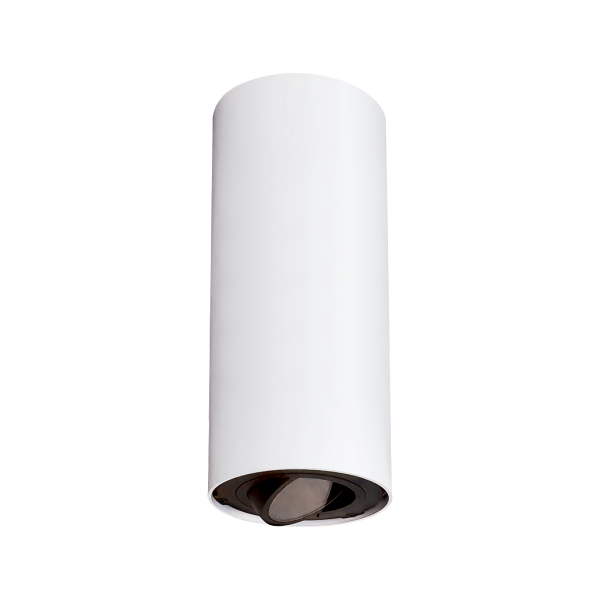

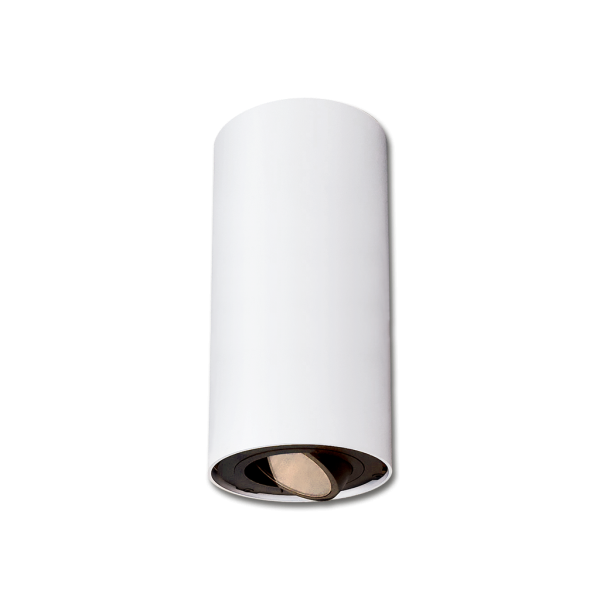

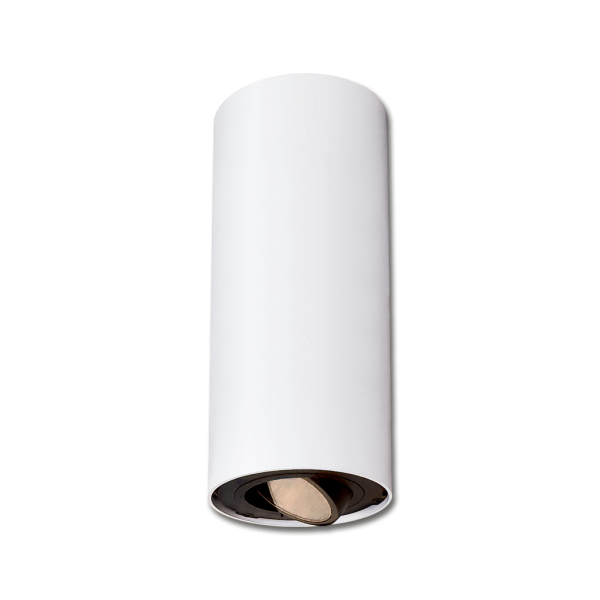

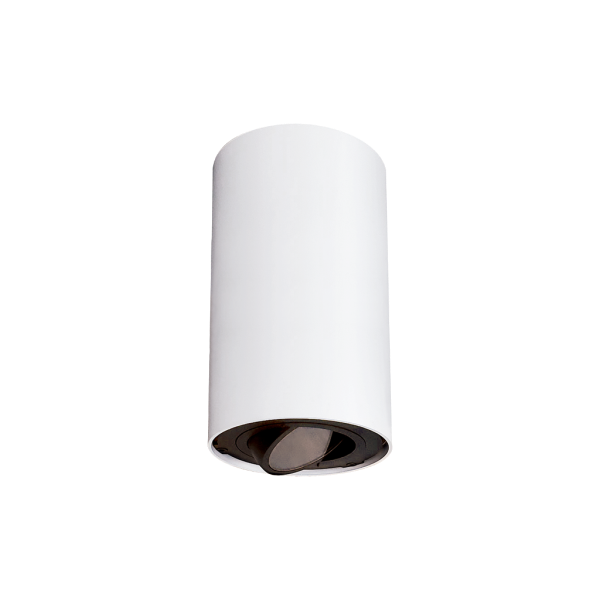

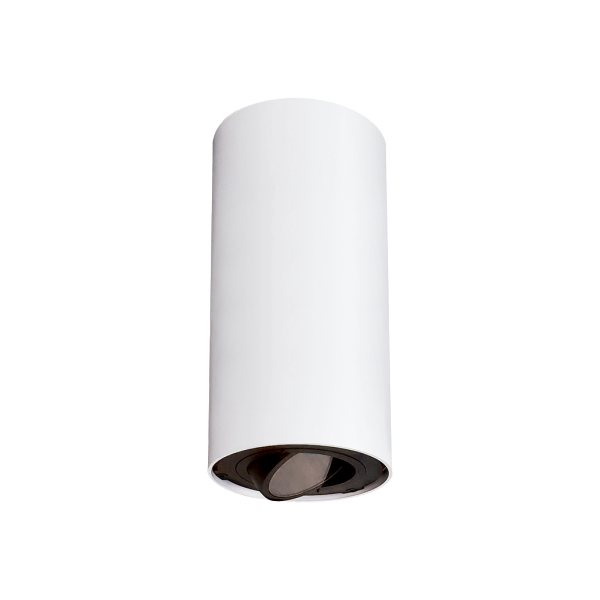

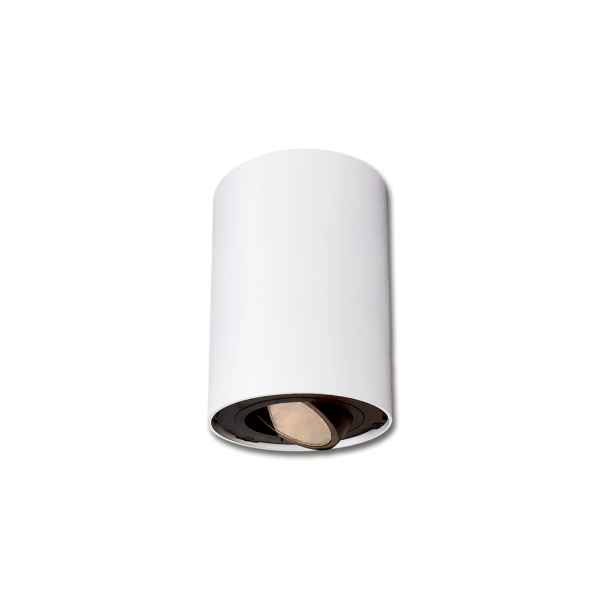

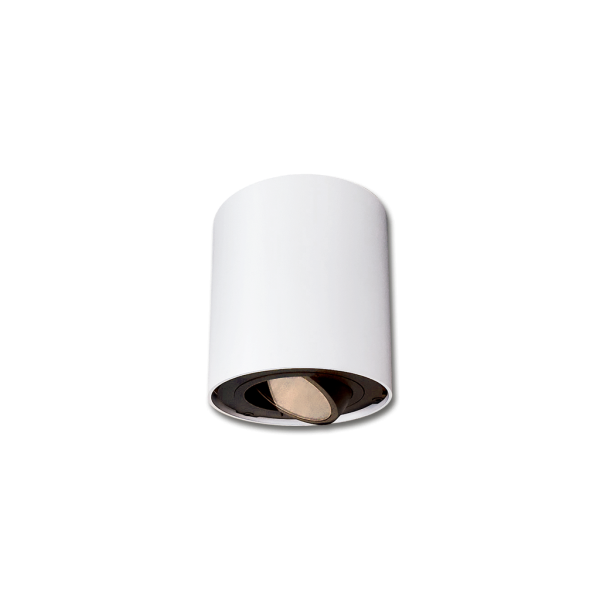

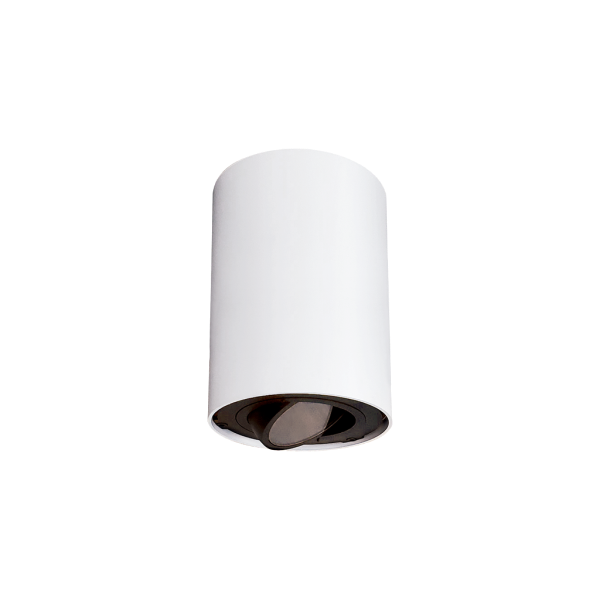

SSC8GA is a 8-inch round indoor cylinder with an adjustable gimbal ring to set lighting direction. It has surface, wall, and pendant mounting options for different application installations. The standard driver Tri-Dim includes 0-10V (dims to 1%), TRIAC and ELV. SSC8GA is marine grade, corrosion resistant, solid aluminum extrusion, die-cast aluminum components. The adjustable Gimbal Ring assembly can be rotated 359° and tilted (+/–) 32°, using an .050" hex driver to loosen set screws on the face, to set the light beam direction. It has an IK05 impact compliant, clear anti-glare tempered glass lens. Continuous silicone gasket to seal out contaminants, IP43 rated for dry or damp locations. It’s also vibration resistant, compliant with 1G ANSI C136.31, Seismic rated AC-156.
Spec Sheet
Spec Sheet Downloads
Install Instructions
SSC8GA
SSC8GA
SSC8GA
SSC8GA
SSC8GA
SSC8GA
SSC8GA
SSC8GA
SSC8GA
SSC8GA
SSC8GA
SSC8GASSC8GASSC8GASSC8GASSC8GASSC8GASSC8GASSC8GASSC8GASSC8GASSC8GA

FEATURES & BENEFITS


Performance
3500 lm (34W)
3000 lm (27W)
2500 lm (23W)
2000 lm (18W)

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC
347 VAC

Control
Tri-Dim includes 0-10V, 1%, TRIAC and ELV

Mounting Options
Surface, Wall or Slope Pendant

Mounting Type
Surface
Wall or Slope Pendant

Warranty
5-Year Limited Warranty

Optic Beam Options
15°
25°
60°
