SSC8R16-ACR
8" Interior Up/Down Light

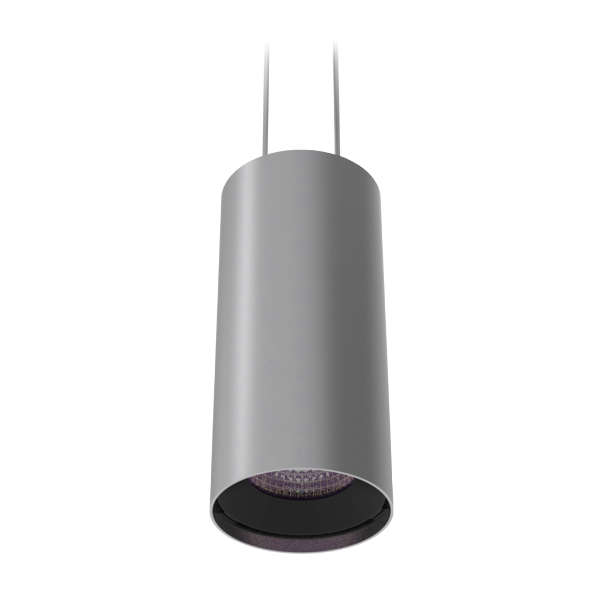

SSC8R16-ACR 8" Up/Down Cylinder

SSC8R16-ACR is an up/down light cylinder, with remote drivers, and mounted with Kevlar-Reinforced Twin-Conductor Cable. Lighting from 3,000 up to 15,000 Lumens Total. Remote Driver with Dual 0-10V Dimming 1% Standard. There are 80 unique optical combinations to choose from with the field changeable optics. It uses a Hybrid Power + Kevlar-Reinforced Twin-Conductor Cable Technology. These cylinders look sleek with no visible seams or fasteners. Complete your design with multiple finish color options.
Spec Sheet
Spec Sheet Downloads
IES
Install Instructions
Install Instructions Downloads
SSC8R16-ACR
SSC8R16-ACR
SSC8R16-ACRSSC8R16-ACR

FEATURES & BENEFITS


Performance
3000-15000 lm (73W per side)

CCT
2700K
3000K
3500K
4000K
5000K

Power Input
UNV 120 - 277 VAC

Control
Standard: 0-10V Dimming, 1%

Mounting Options
Kevlar-Reinforced Twin-Conductor cable mount with dual cable for up/down

Mounting Type
Power AC
Aircraft Cable

Warranty
5-Year Limited Warranty

Optic Beam Options
15°
25°
40°
50°
72°
90°
